Flatbed trailer
Faymonville TeleMAX
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 36901
- Reference Tele-Z-4L-AAA-25-13.60-22.5-2.54
- Number of axles 4
- Condition New
- Year of manufacture 2026
- Colour DB 7350 - Nova grey
- Availability 01/2026
- Steering Type Hydraulic
Availability
01/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 28000 kg |
| Axle load | 48000 kg |
| Gross weight | 76000 kg |
| Tare weight +- 3% | 15200 kg |
| Payload | 60800 kg |
Dimensions
| Fifth wheel height loaded | 1270 mm |
| Trailer length | 13 600 mm |
| Gooseneck length | 4 300 mm |
| Gooseneck width | 2 540 mm |
| Rear gooseneck swing | 2 300 mm |
| Loading platform length | 9 300 mm |
| Extendable by | 22 200 mm |
| Loading platform width | 2 540 mm |
| Suspension stroke | -100/+100 mm |
| Axle distance | 1 810 mm |
Loading deck

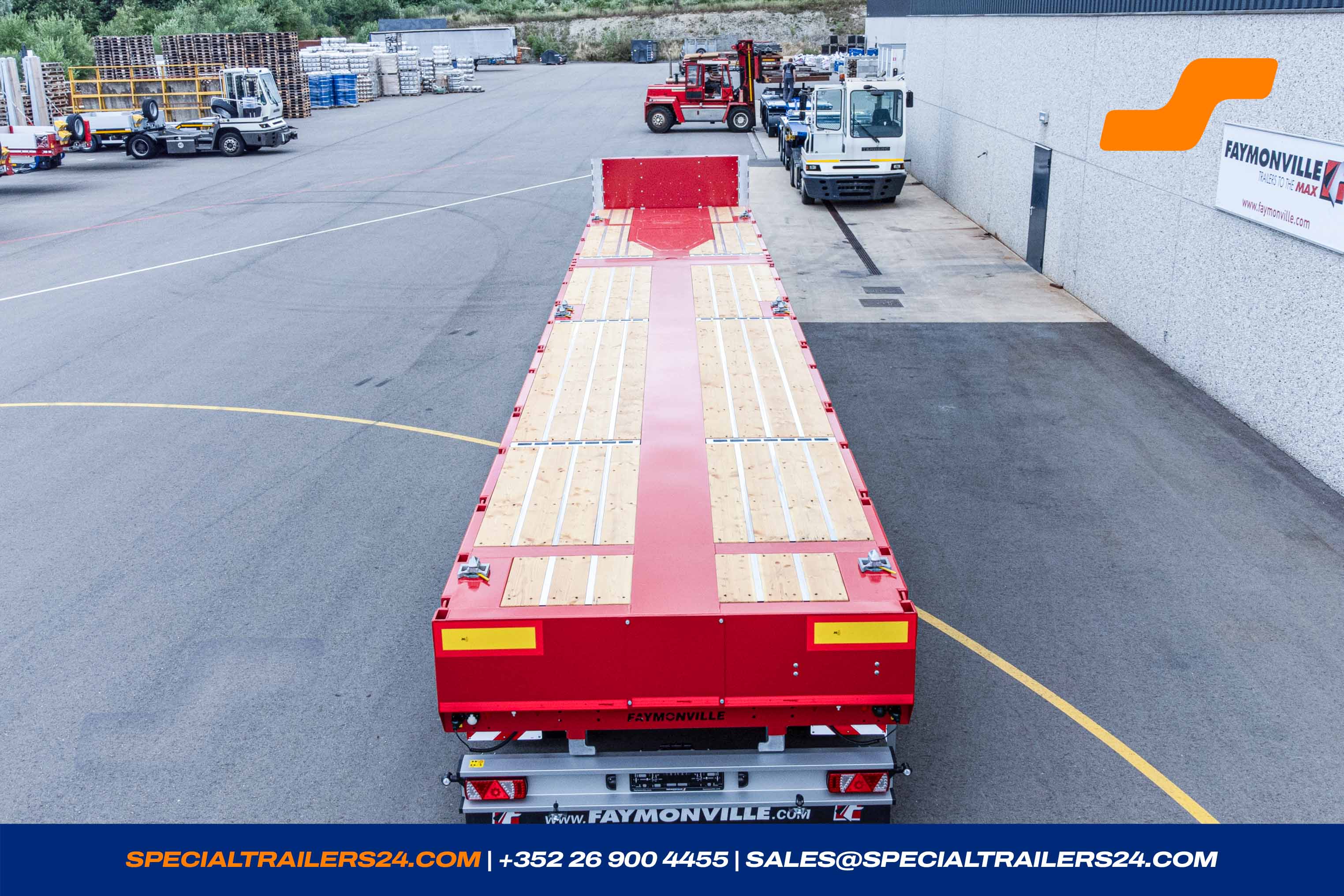

Loading platform
1 x Loading platform:
Gooseneck, length ± 4 300 mm with central carrier.

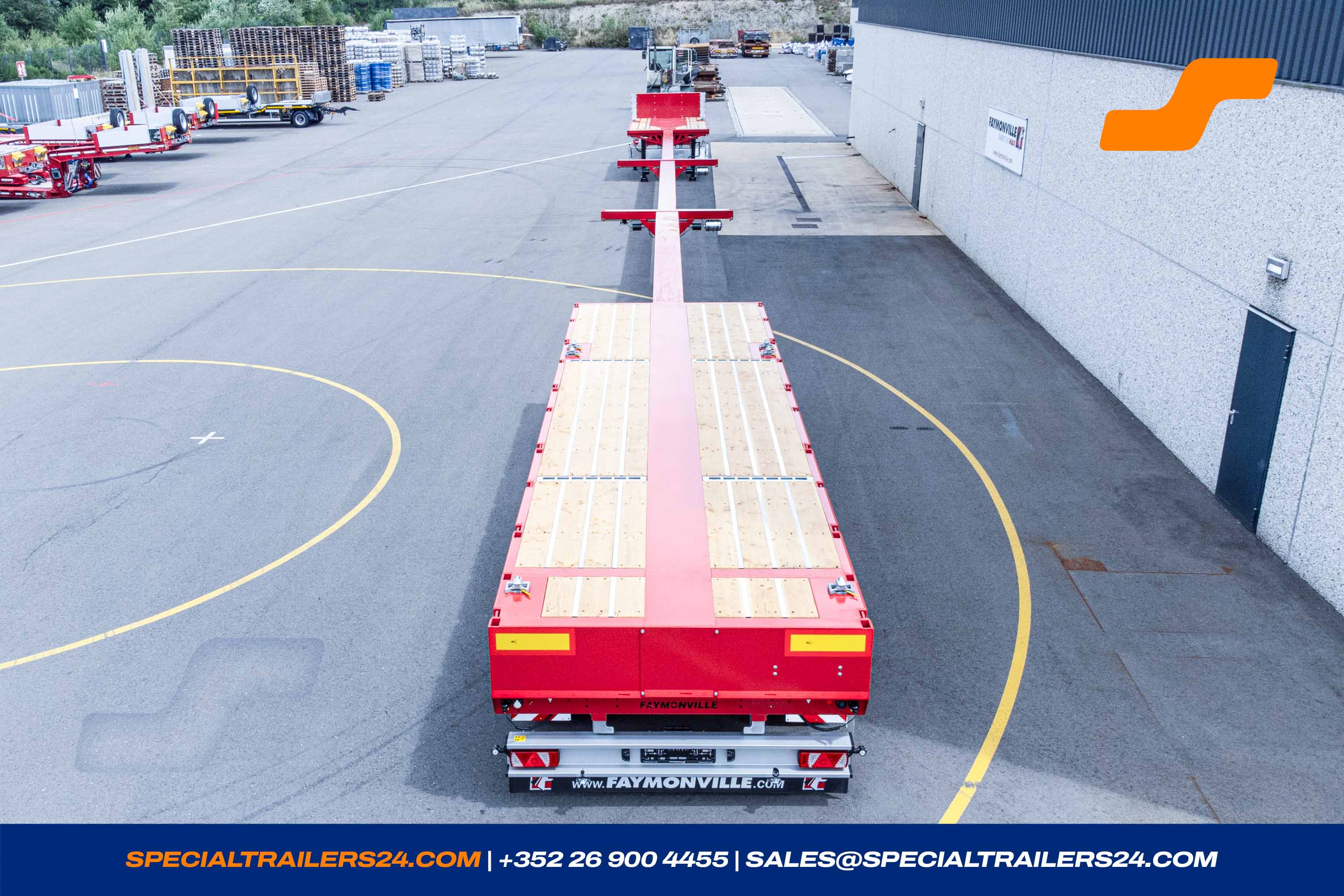

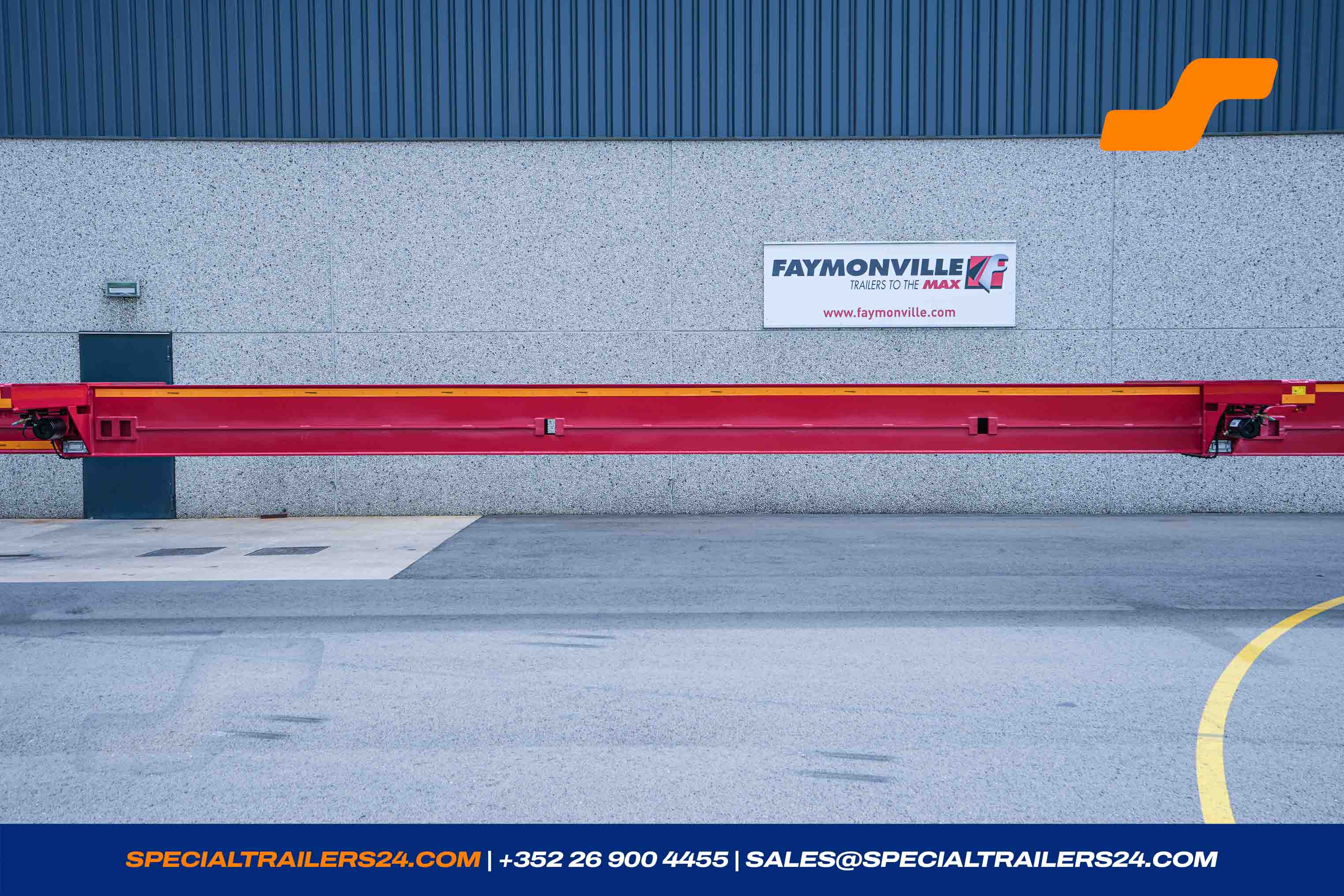

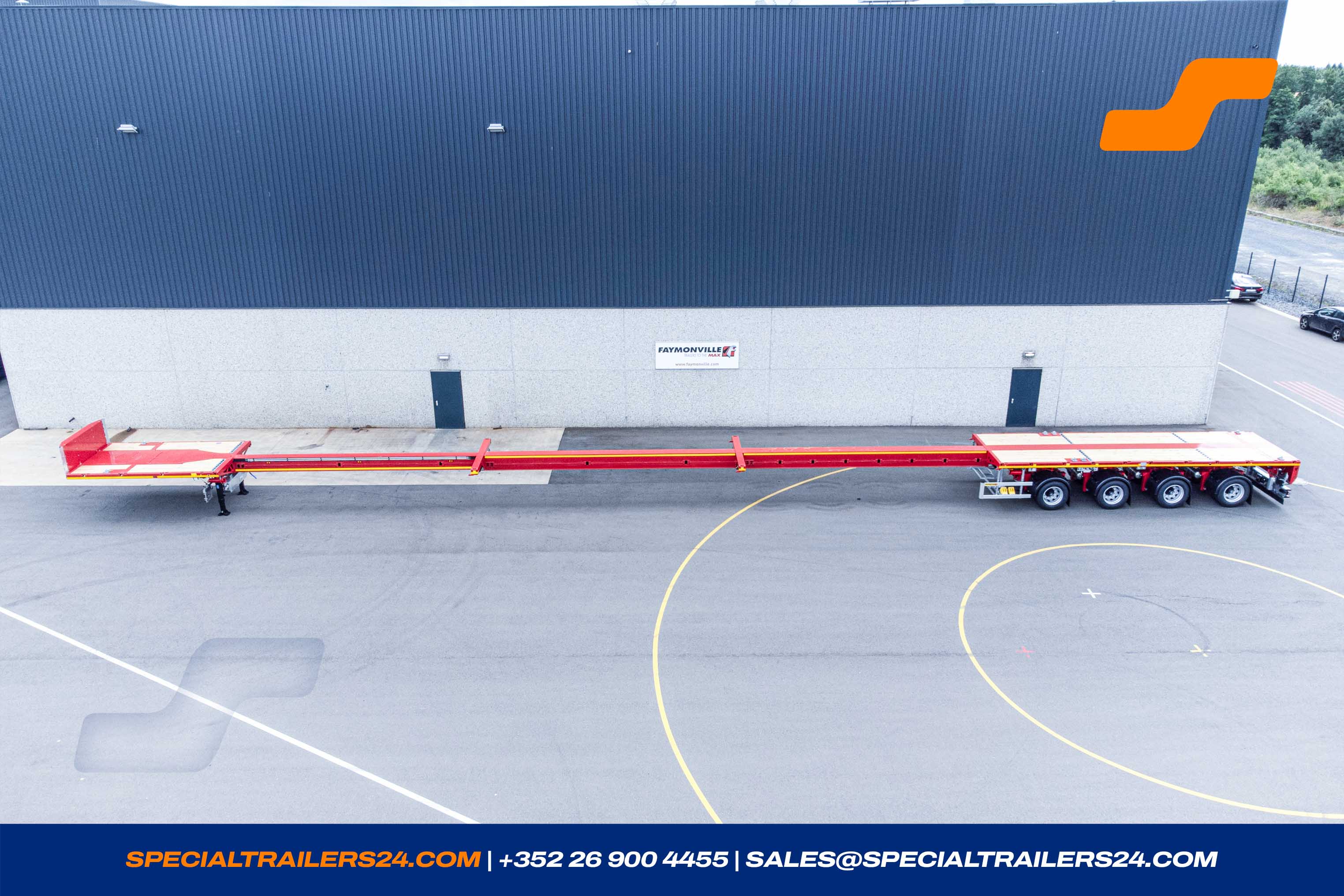

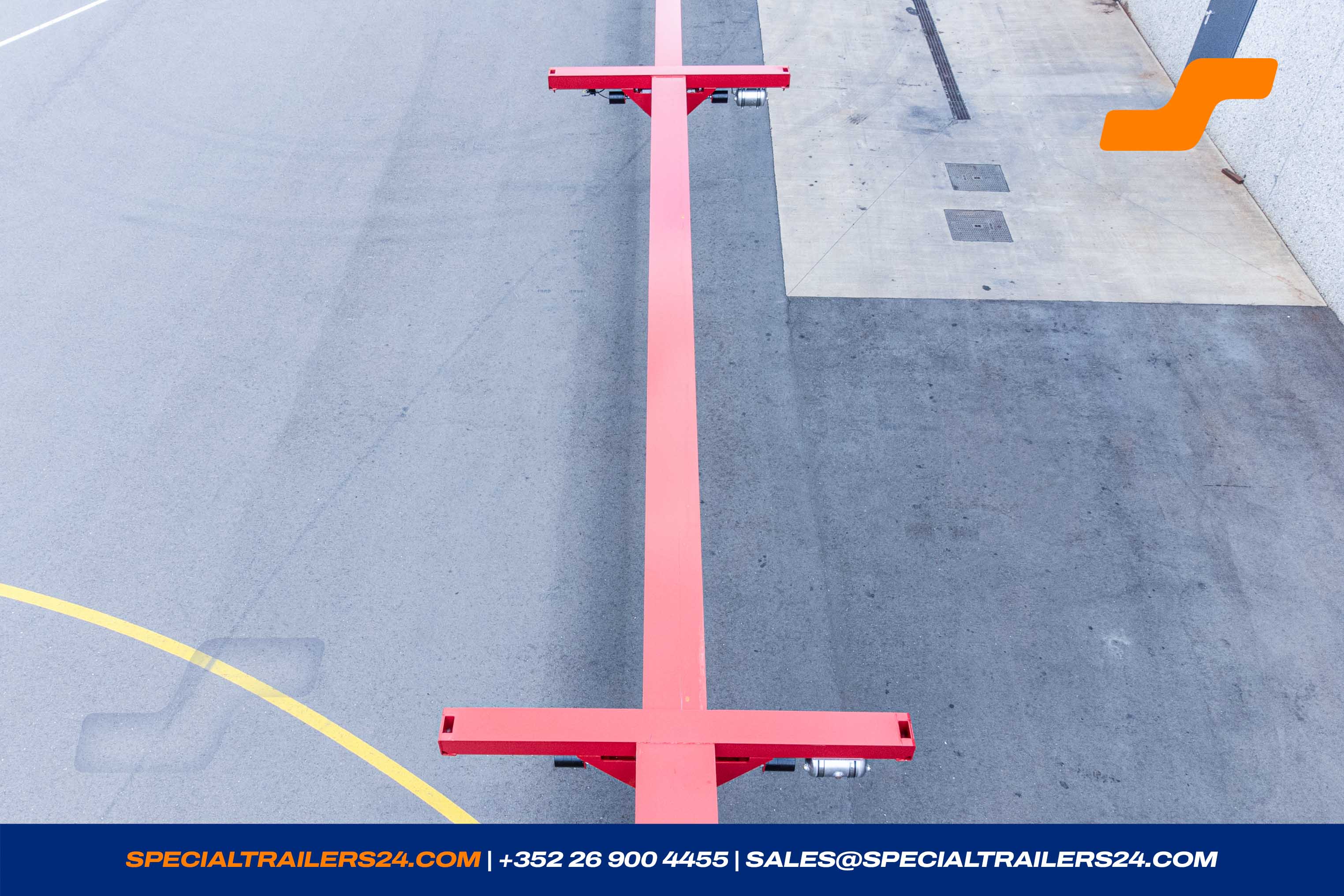

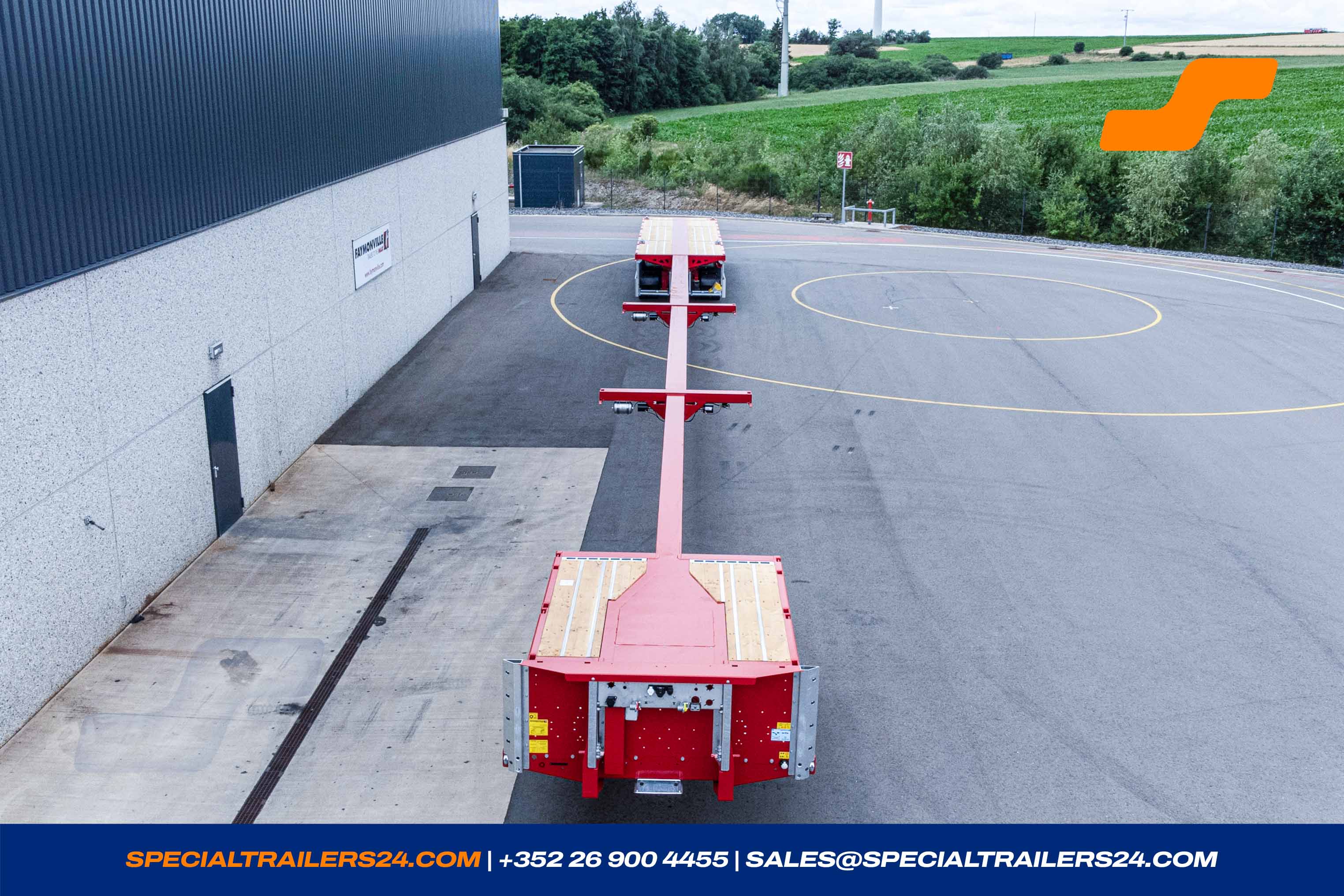

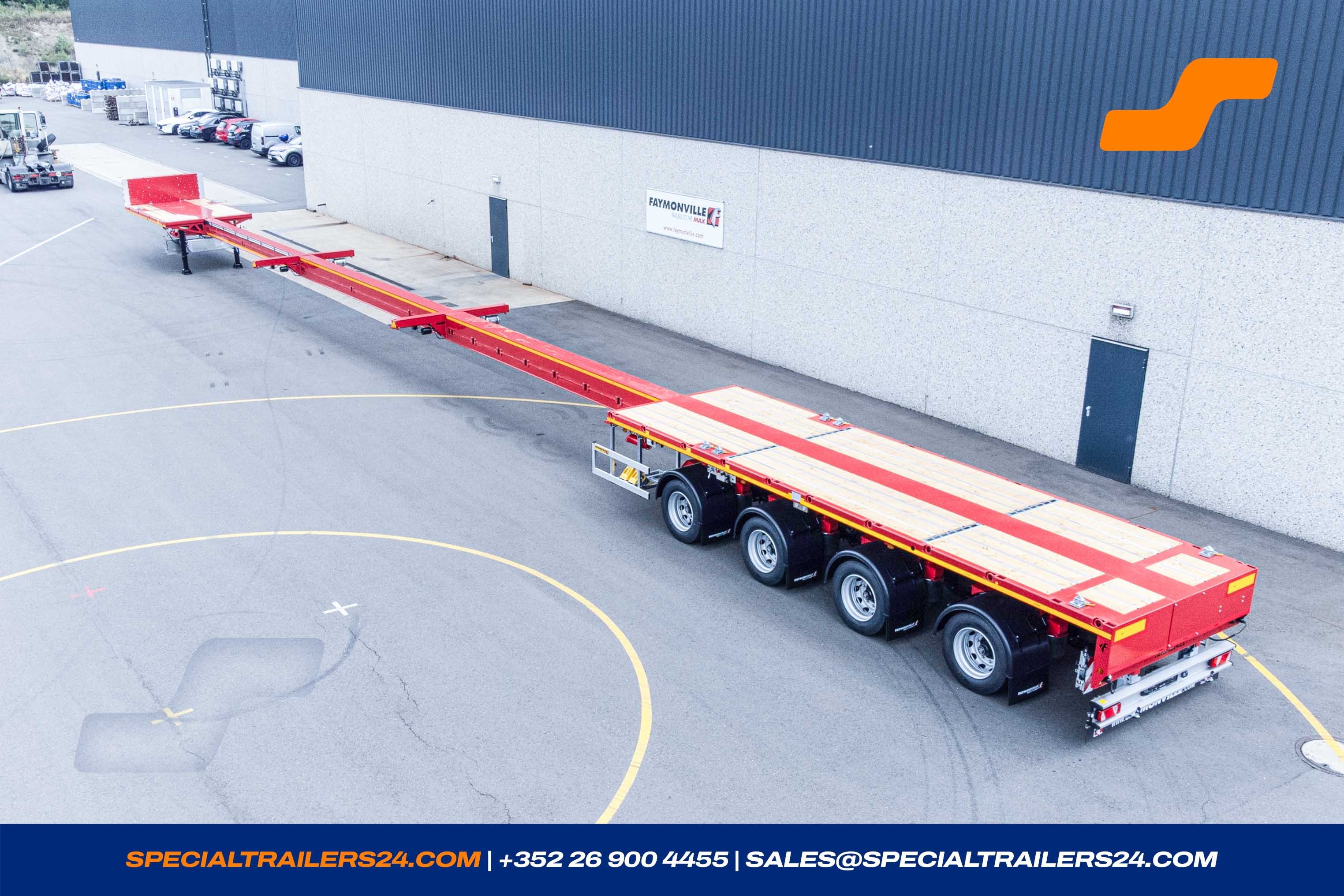

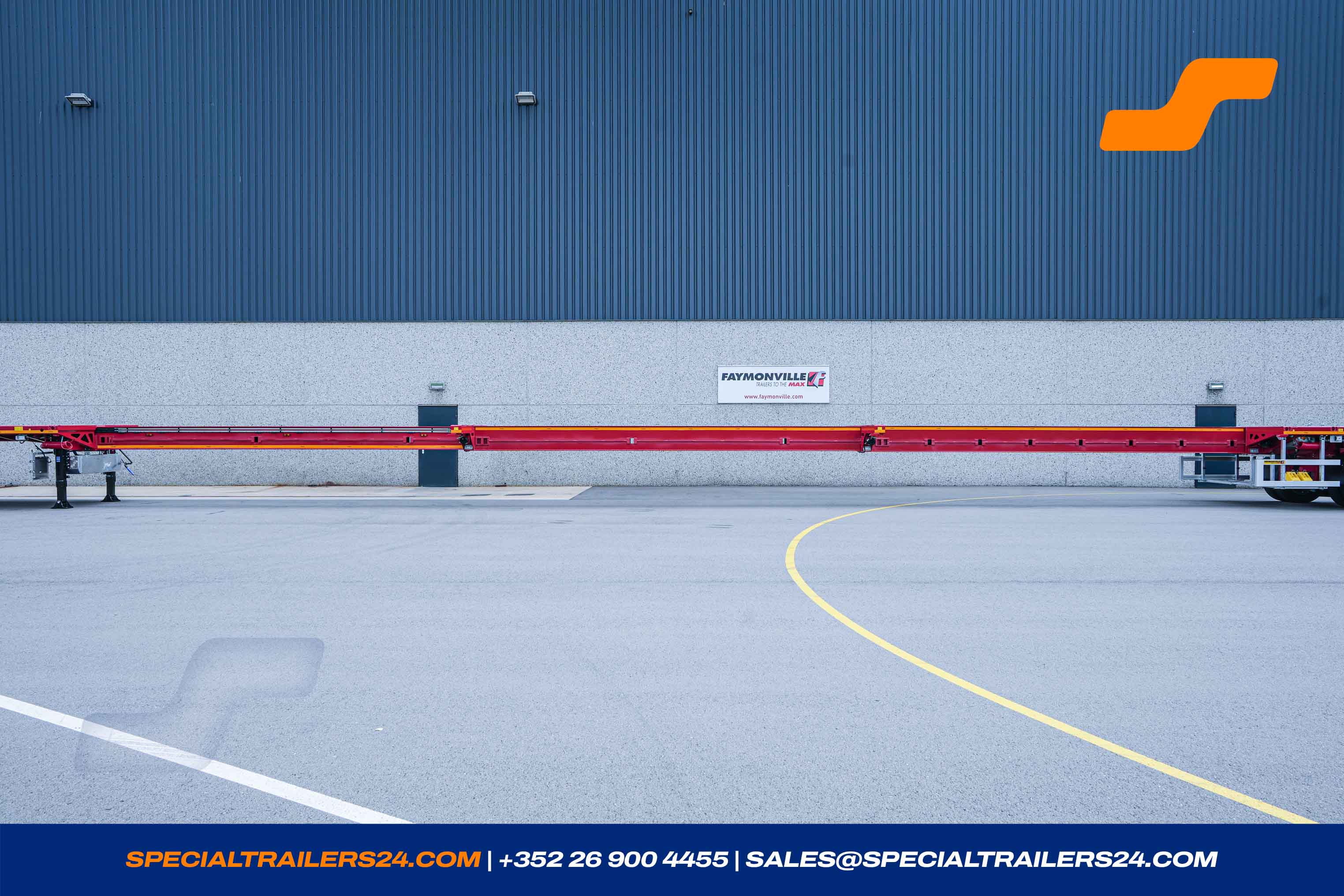

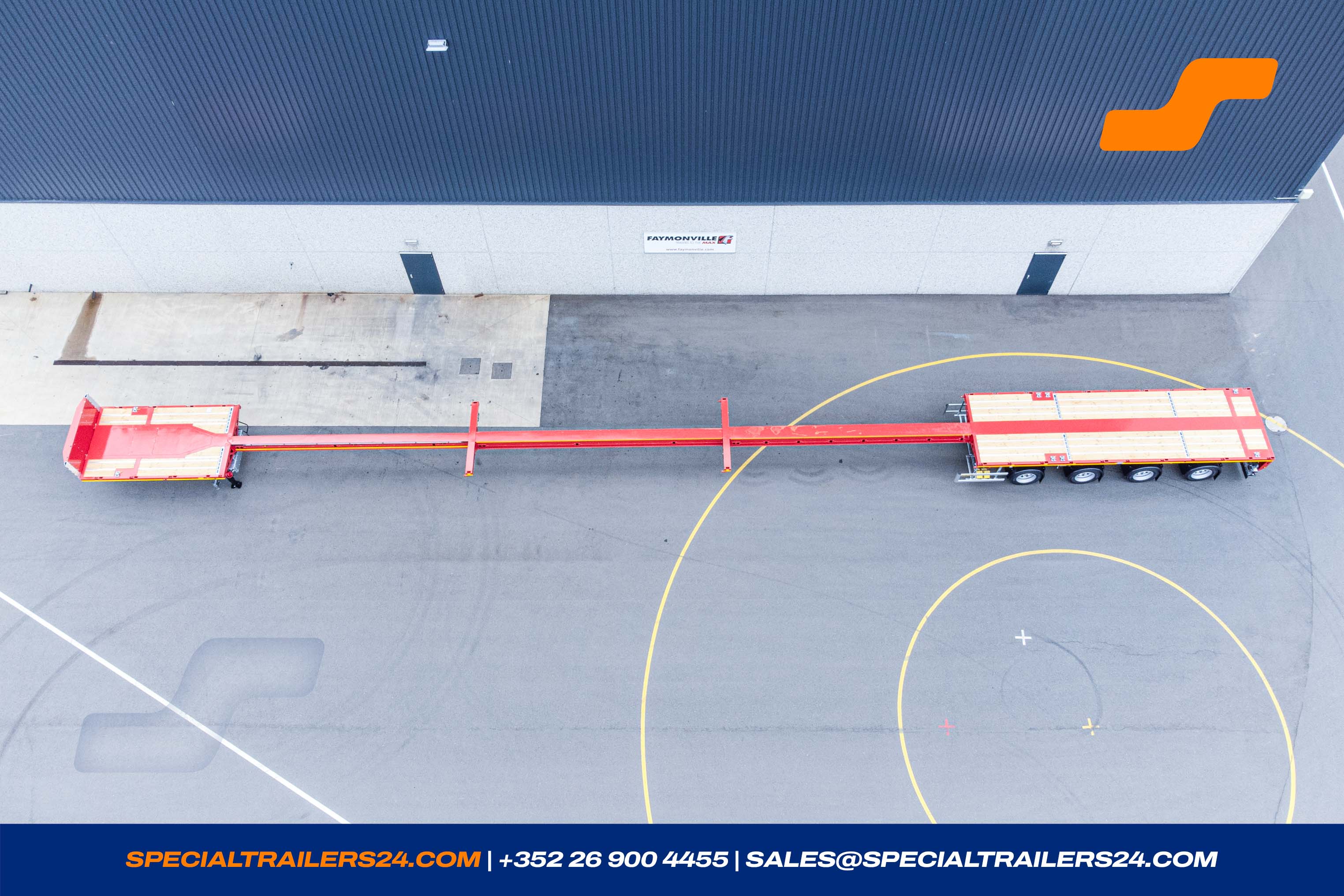

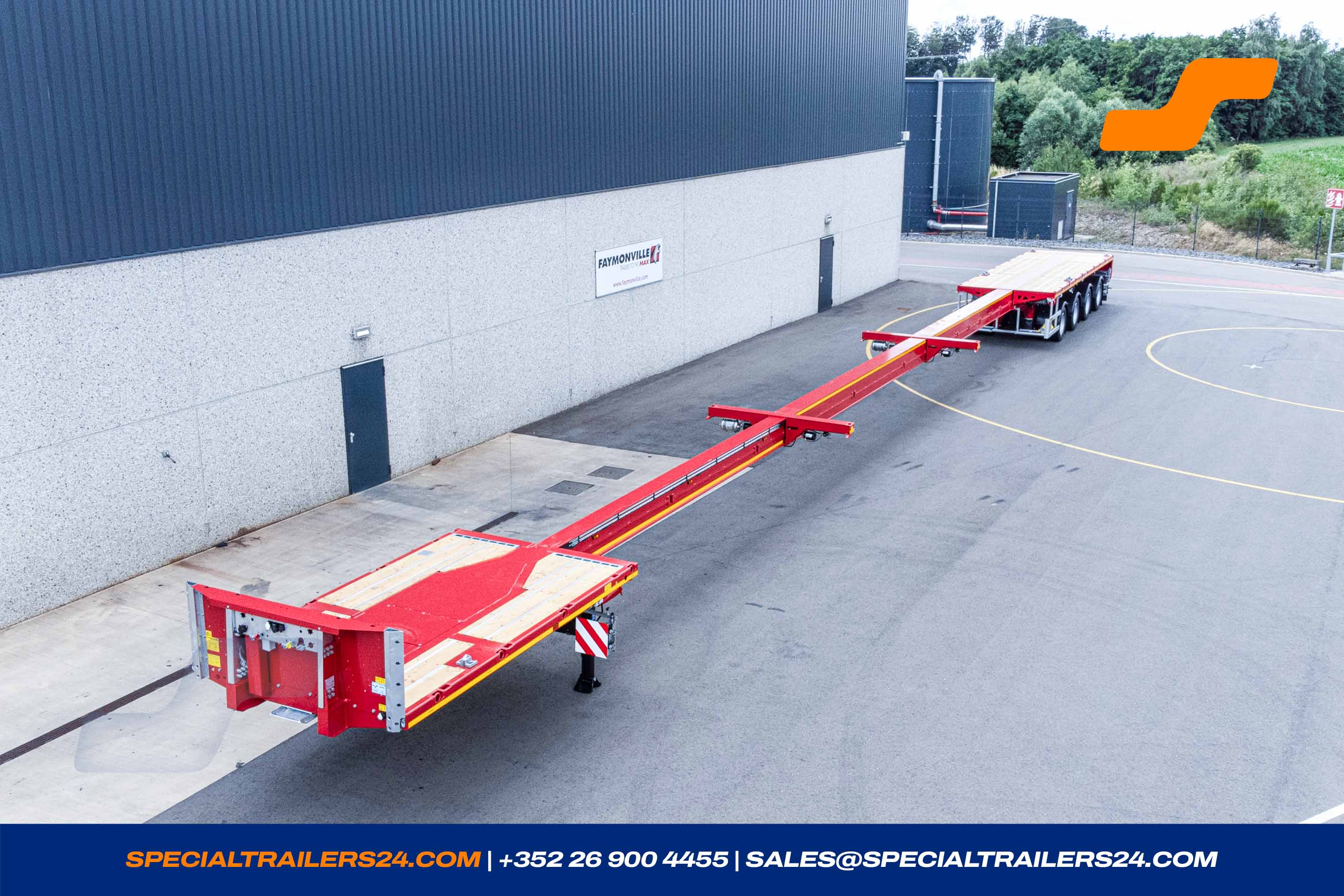

Loading platform triple extendable, length ± 9 300 mm.
Oo the middle beams a intermediate table ± 200 mm is firmly welded.
Pneumatic locking with conic locking bolt and reinforced locking positions, the supply lines are laid in the extendable beams and adapt automatically to the different loading platform length.
(Except for the supply of the first and second locking).
King pin load technical: 28 000 kg
For tractor: 4 x 2, 6 x 2 and 6 x 4
-
TPMS Tyre Pressure Monitoring System according to ECE R 141.
Data transmission to the motor vehicle takes place via the standardised EBS interface according to ISO 11992.
For accurate display, the motor vehicle must be able to transmit and display this data. - TPMS pressure sensor installed in all tires including spare wheels.
-

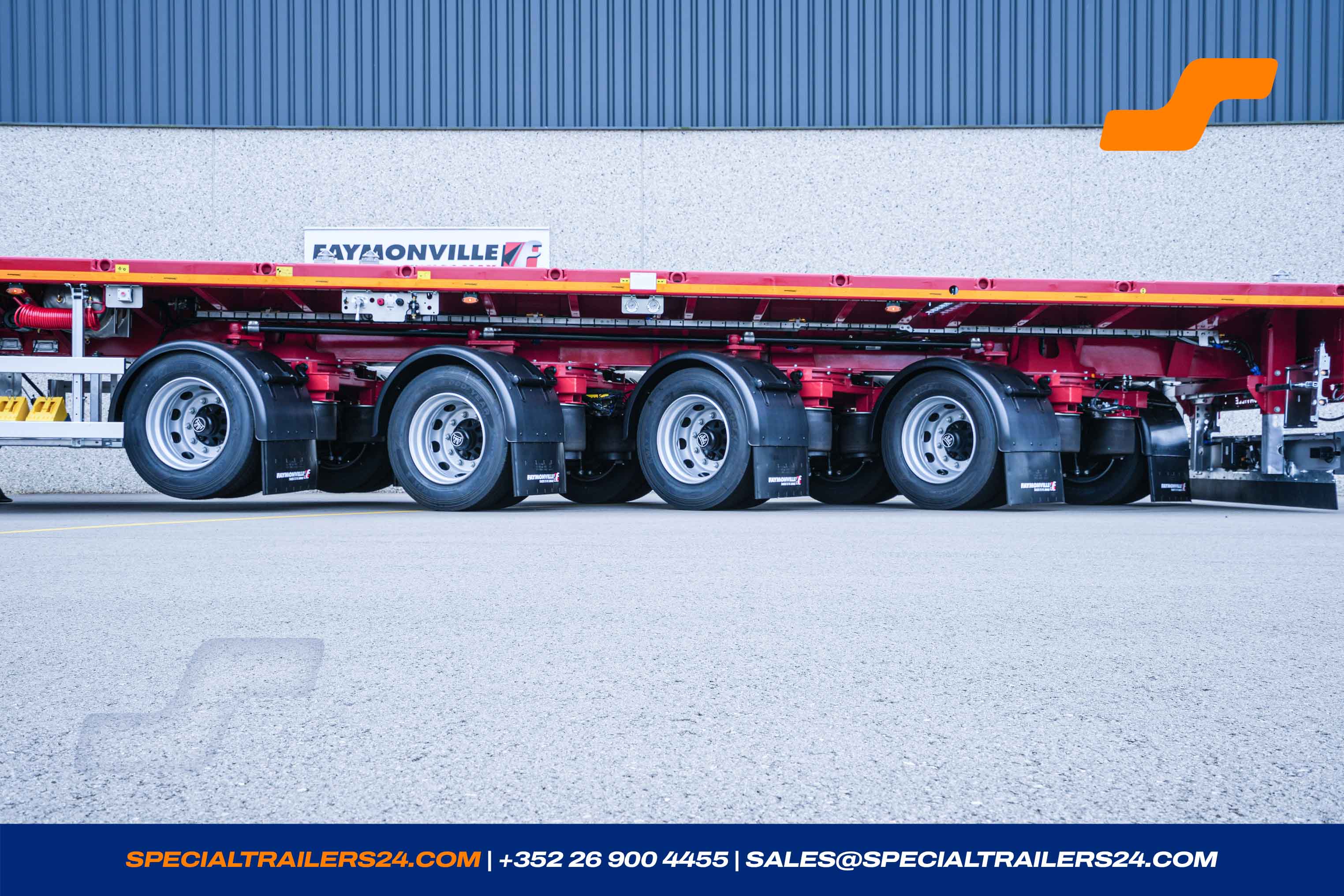

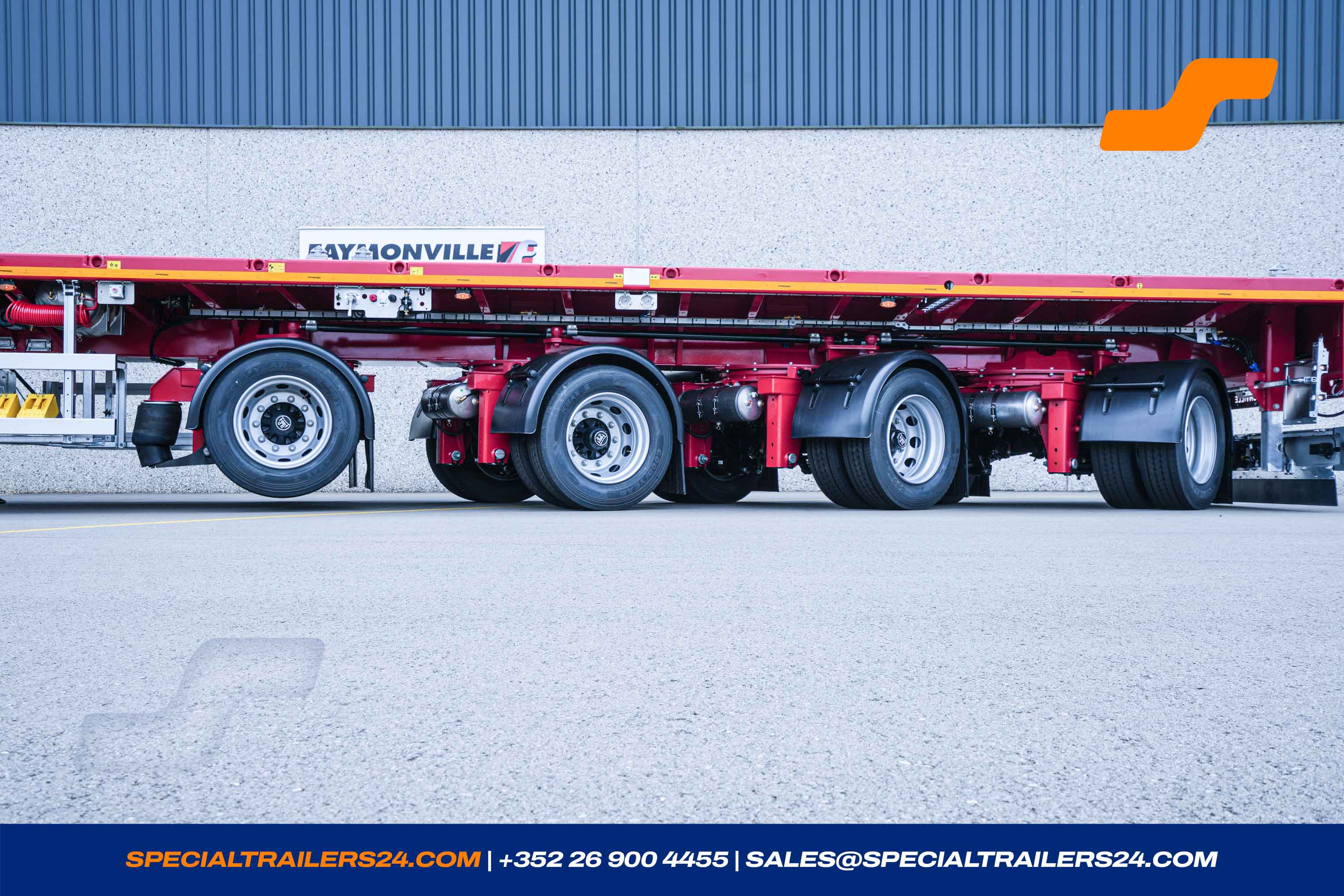

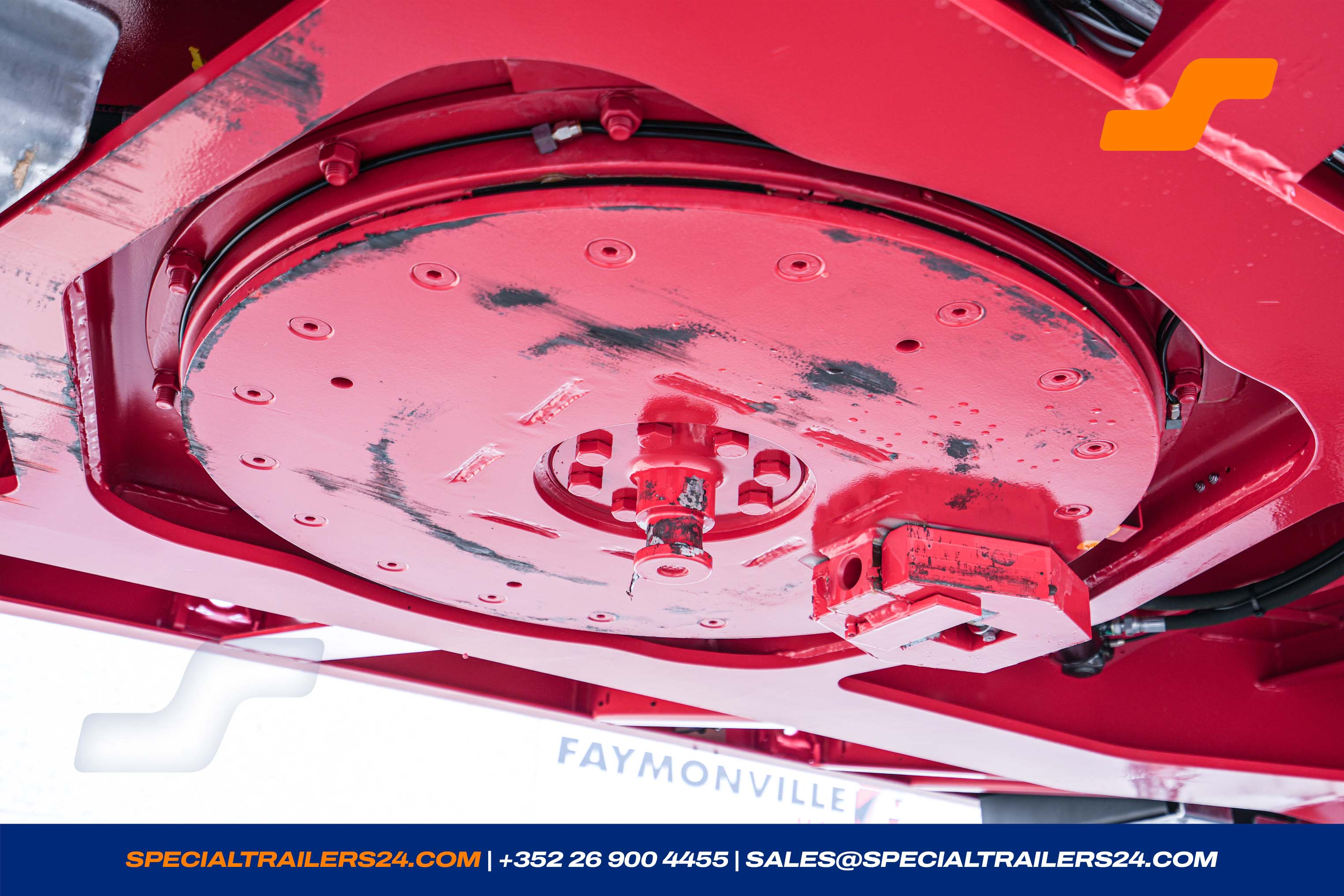

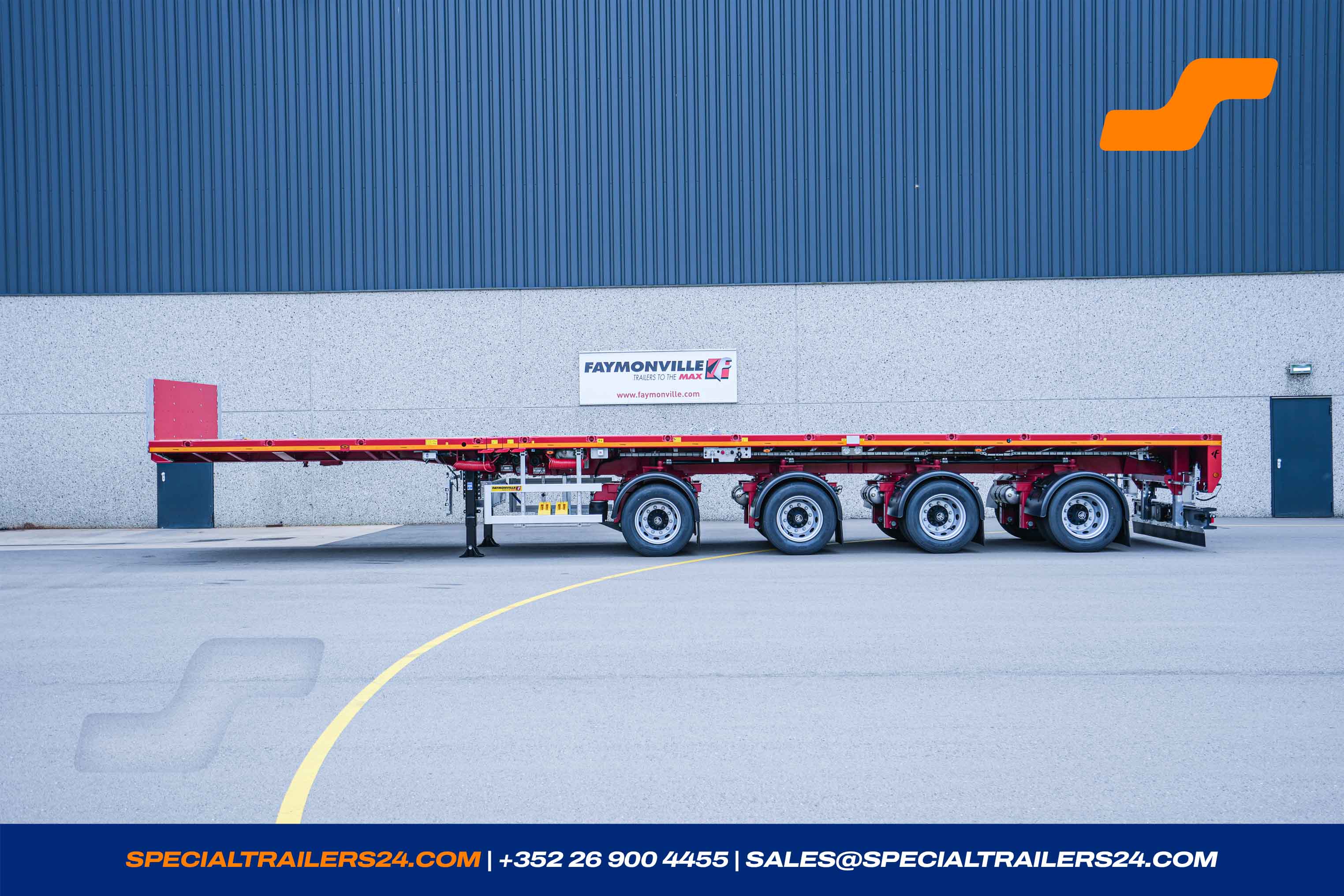

BPW axles and suspension, all axles hydro-mechanically steered, mounted on double race turntables.
Technical axle load: 12 000 kg
Pneumatic suspension with lifting/lowering valve.
Axle tools. -

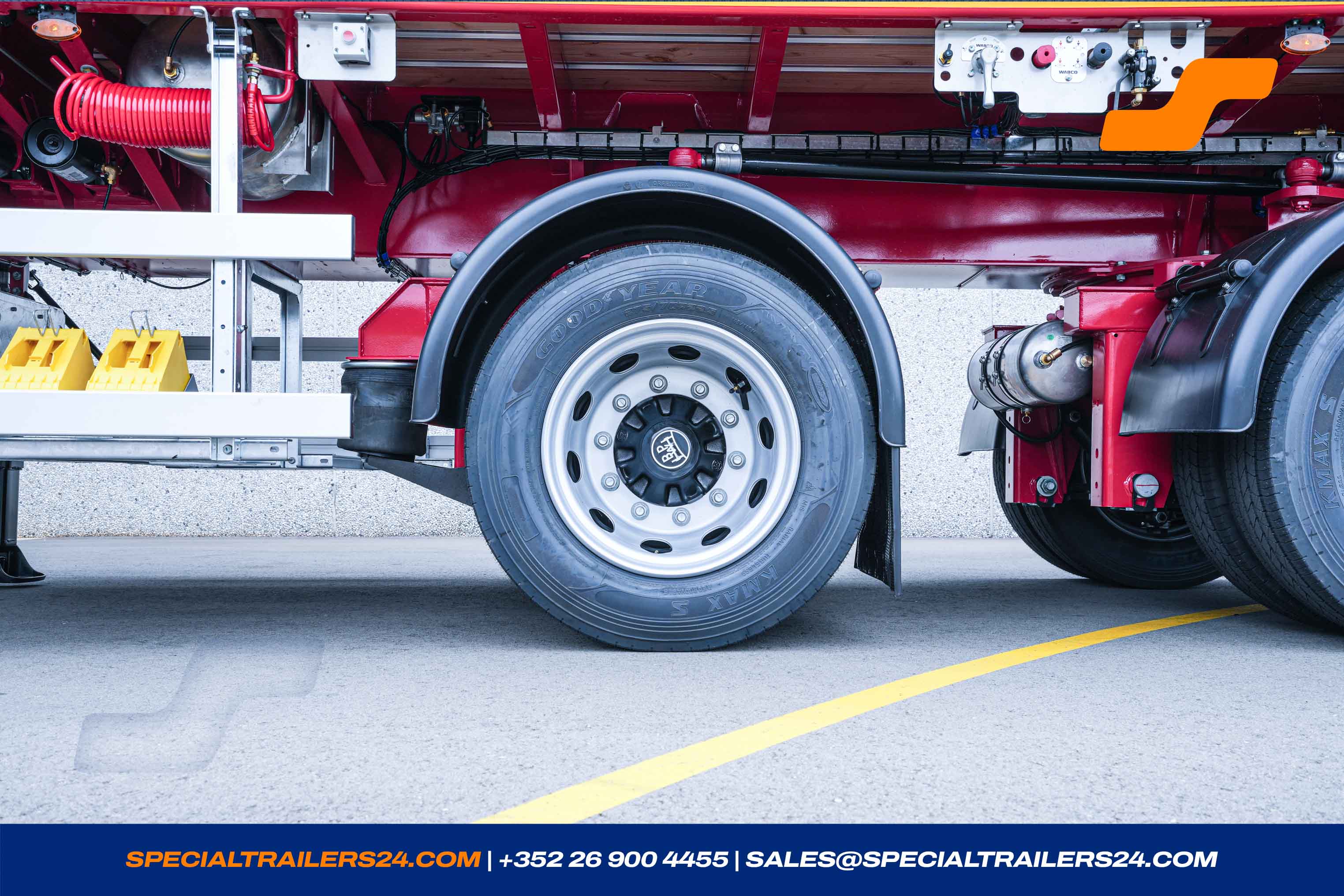

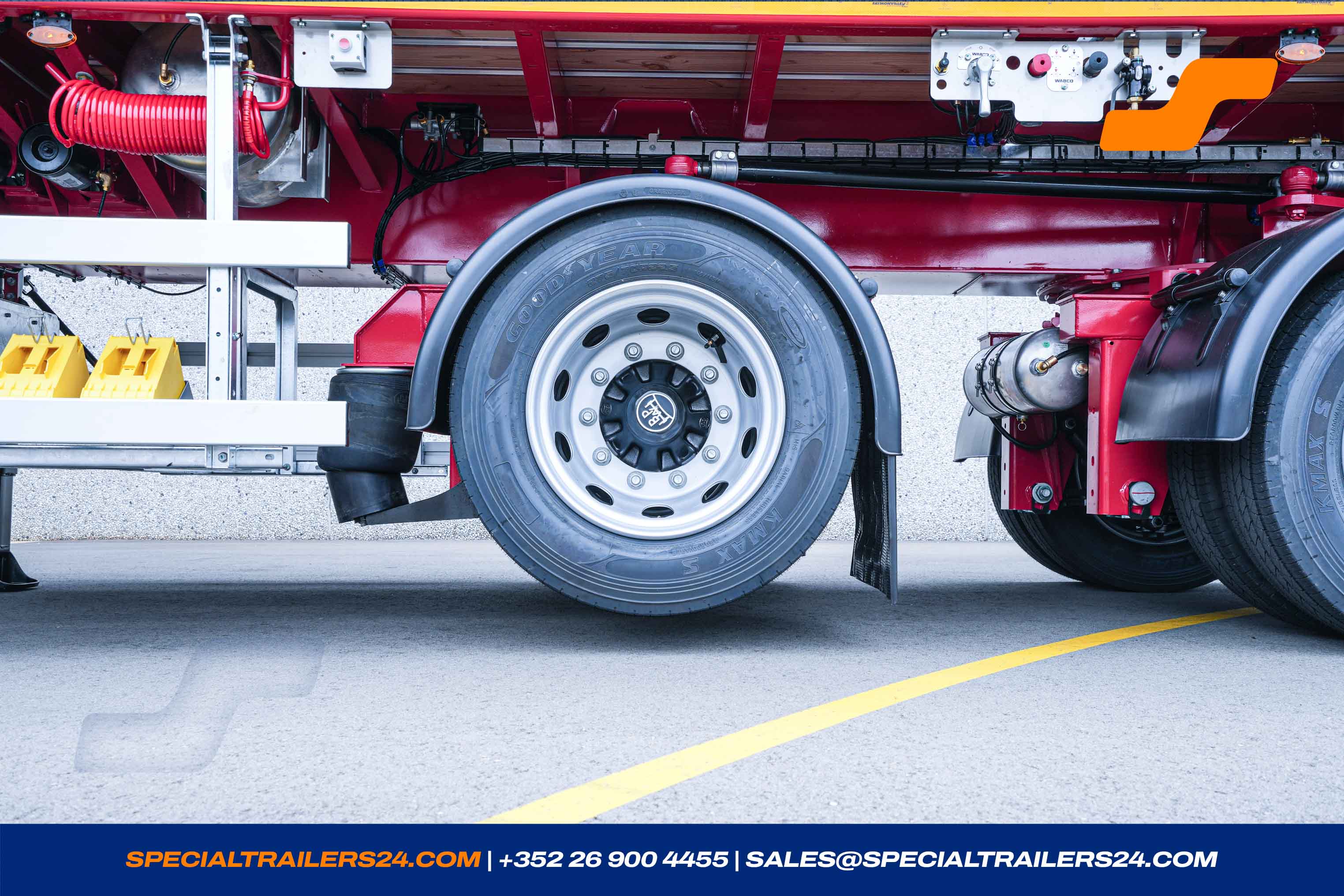

275/70 R 22.5 3PMSF double twin tires
Product of our choice.
Load index 148/145M -

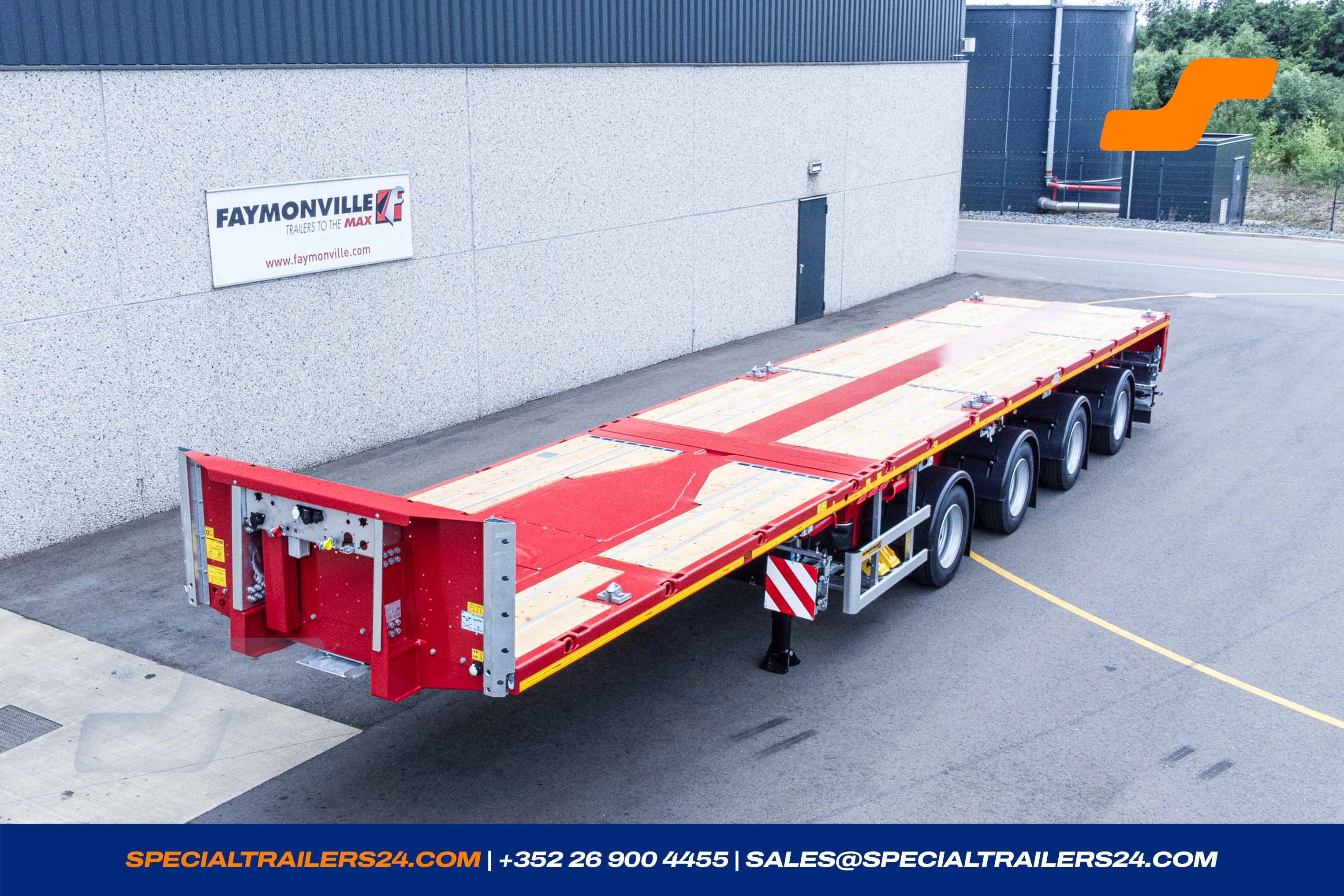

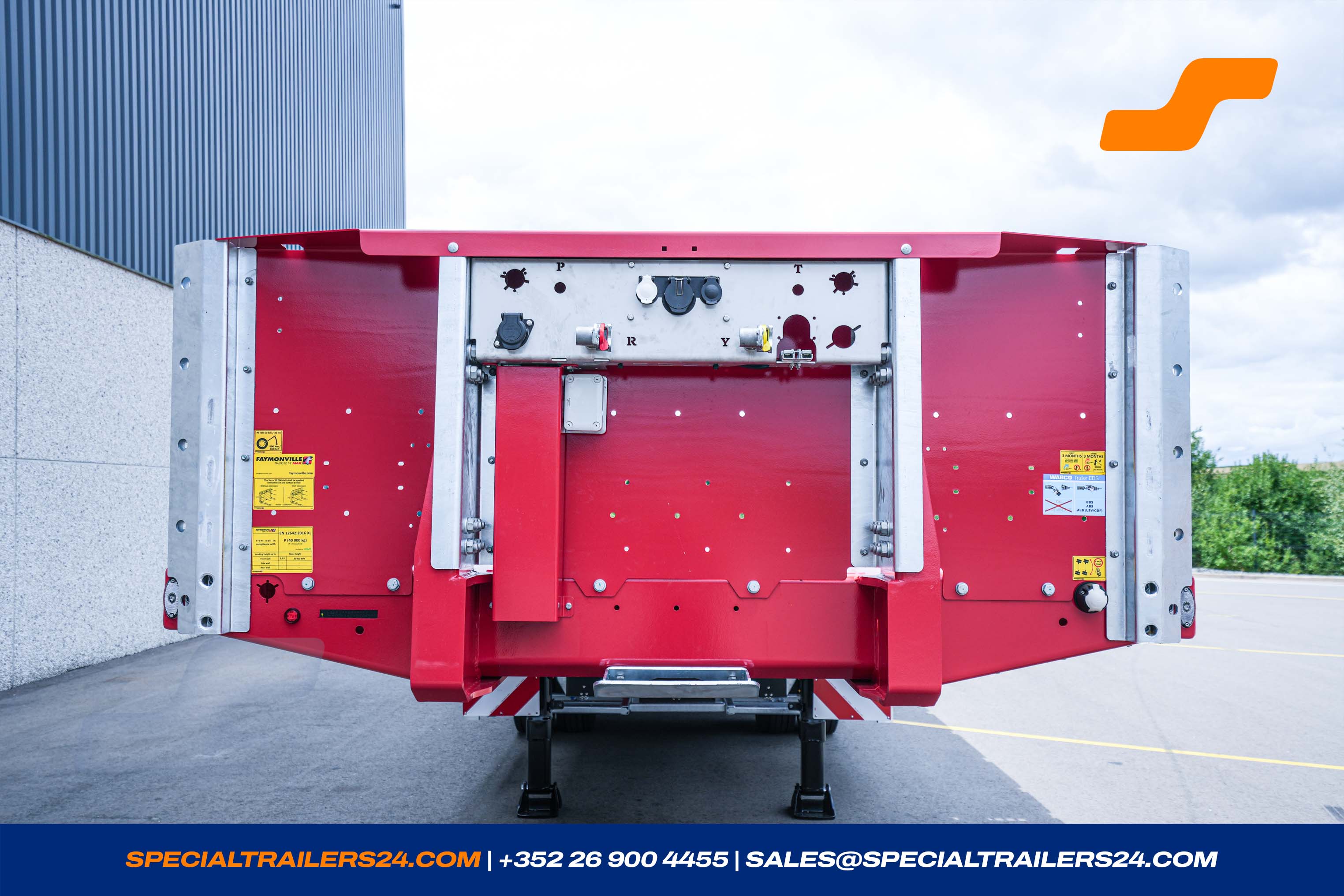

Steel headboard, height ± 800 mm in certified version according to EN12642 : 2016 XL
Maximum load-bearing capacity: 20.000 daN

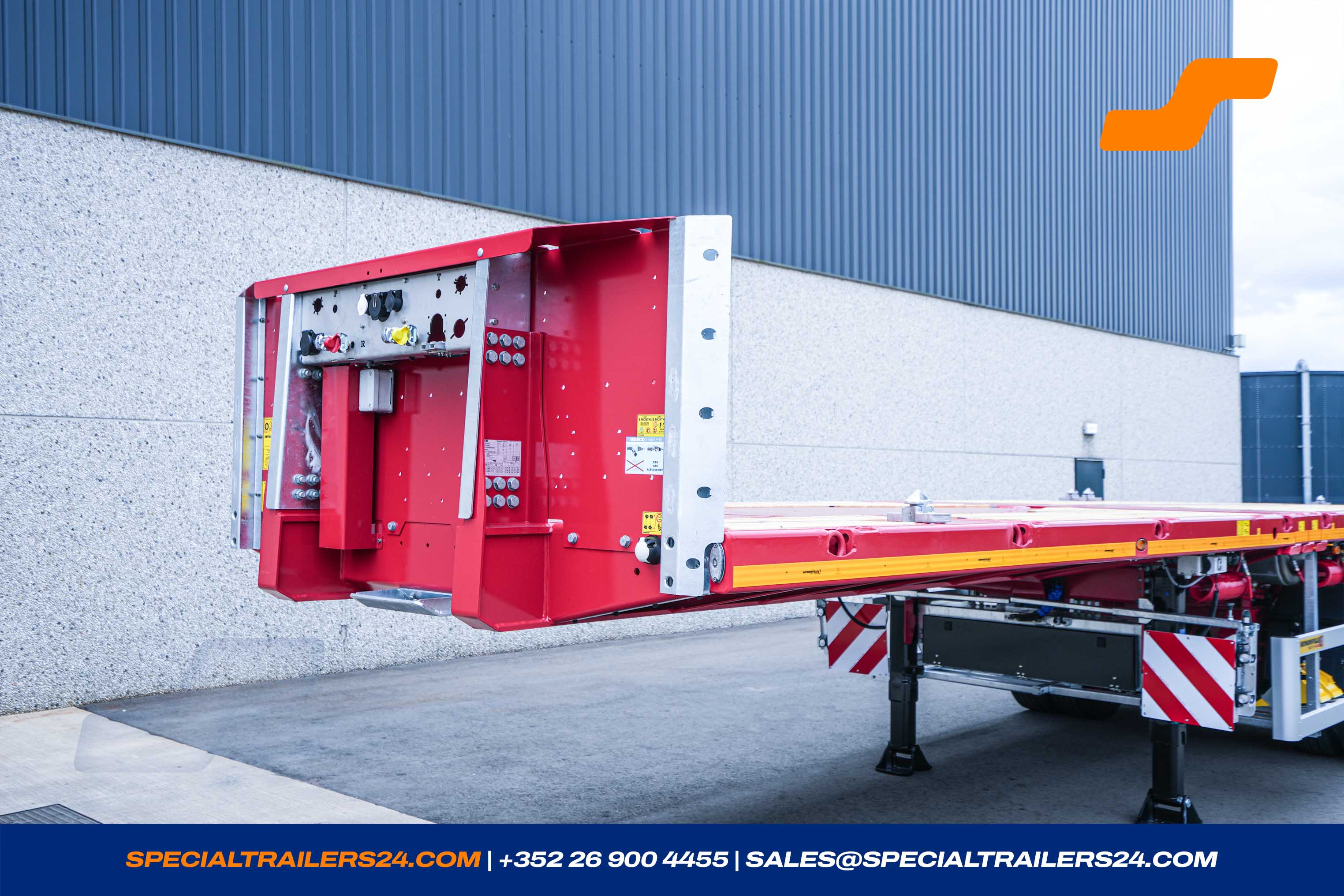

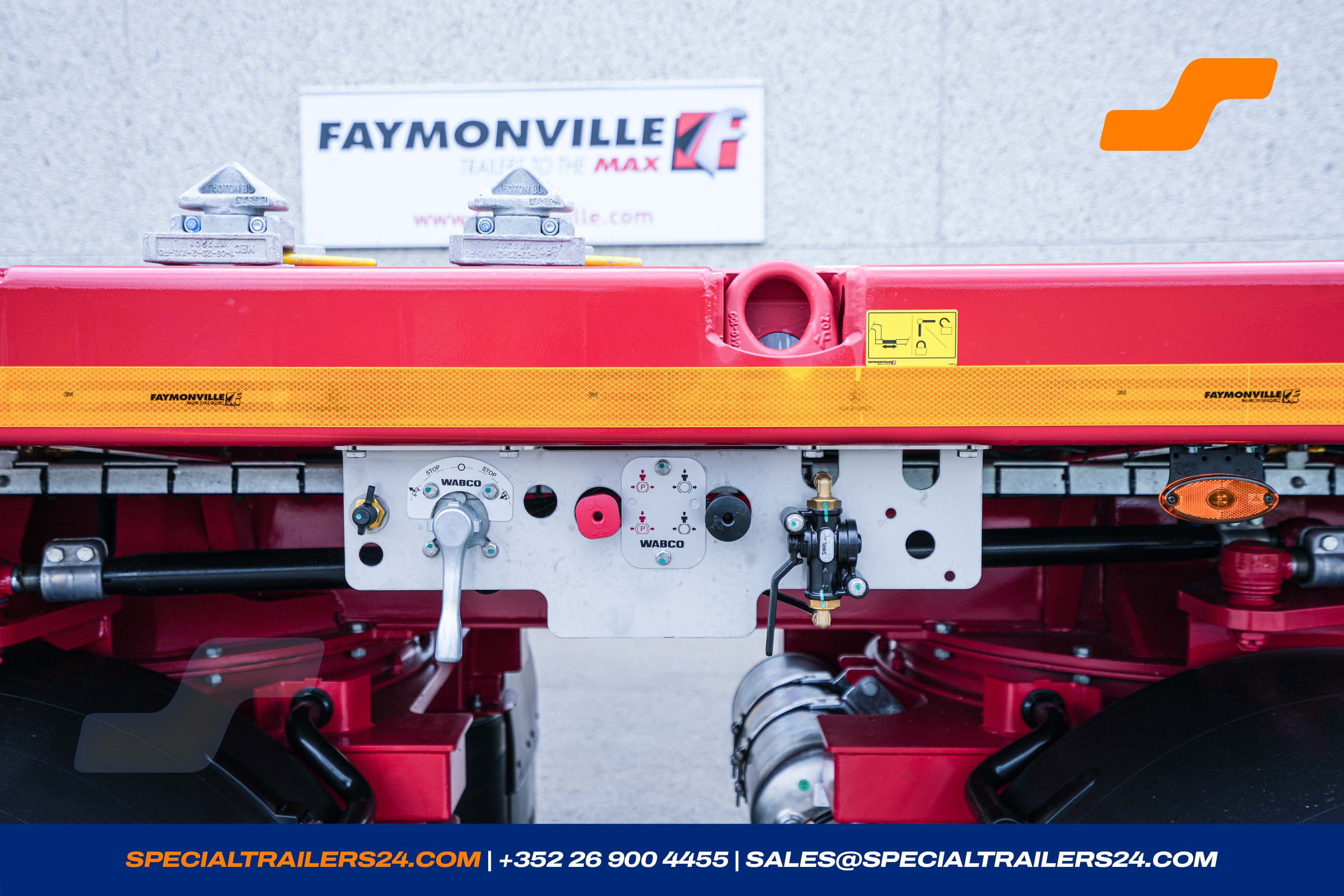

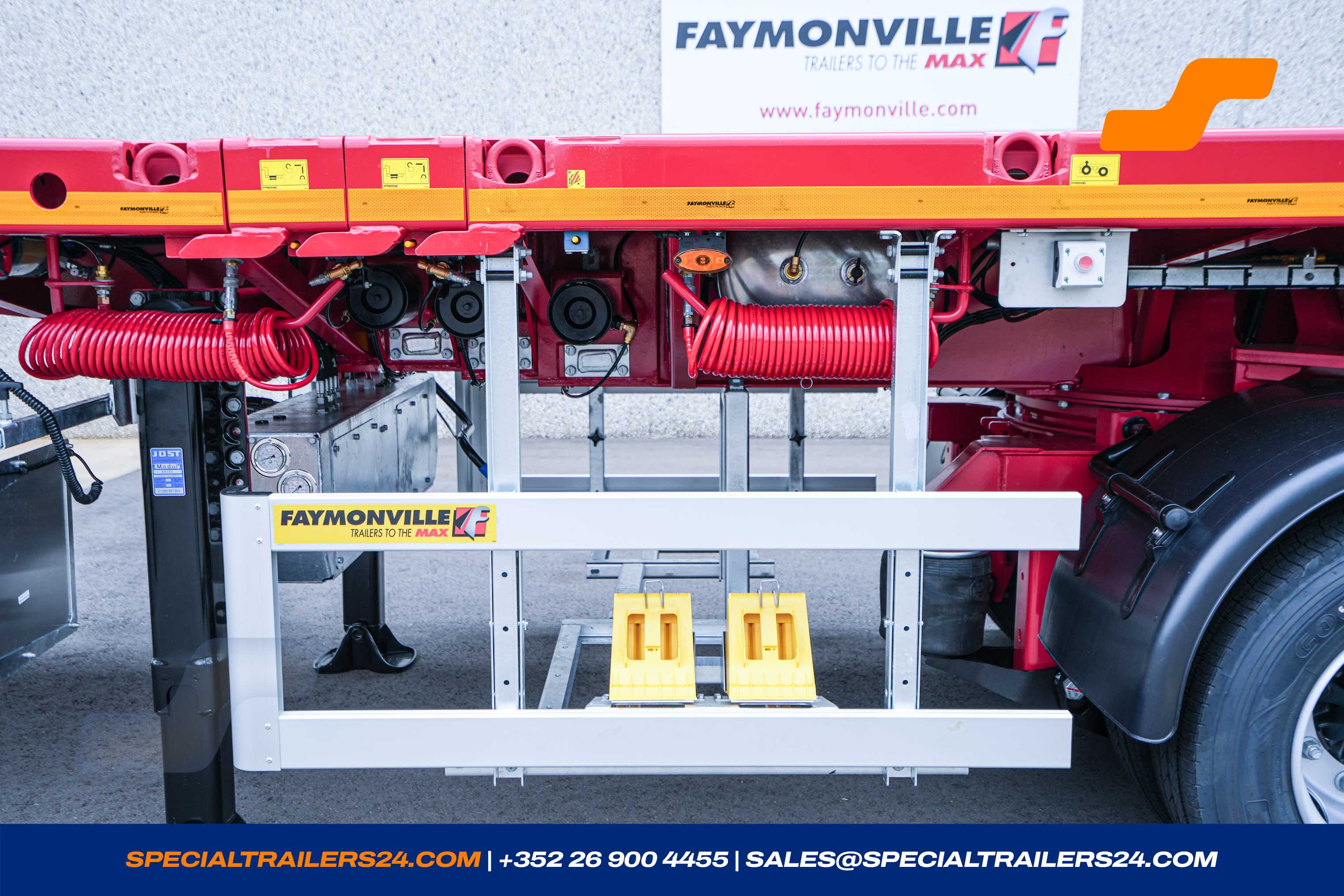

Connection ledge to the truck installed at ± 600 mm from the gooseneck frame. - Red and yellow air couplings on the front connection ledge.
-
ASPÖCK-UNIBOX on the galvanised front connection ledge with socket 24N, 24S & 15 pole.
24N connect according to ISO-1185
24S connect according to ISO-3731
15-pole connect according to ISO-12098
If your poles connection is different to the ISO norm, please inform us. -
3 kW Electro-hydraulic pomp, for the hydraulic functions of the semi-trailer.
Without installation of the supply connection on the truck. -
-
-
1 row of stake pockets on the gooseneck, for stakes ± 50 x 100 mm.
1x at the rear end of the gooseneck. - 3.5 king-pin.
-

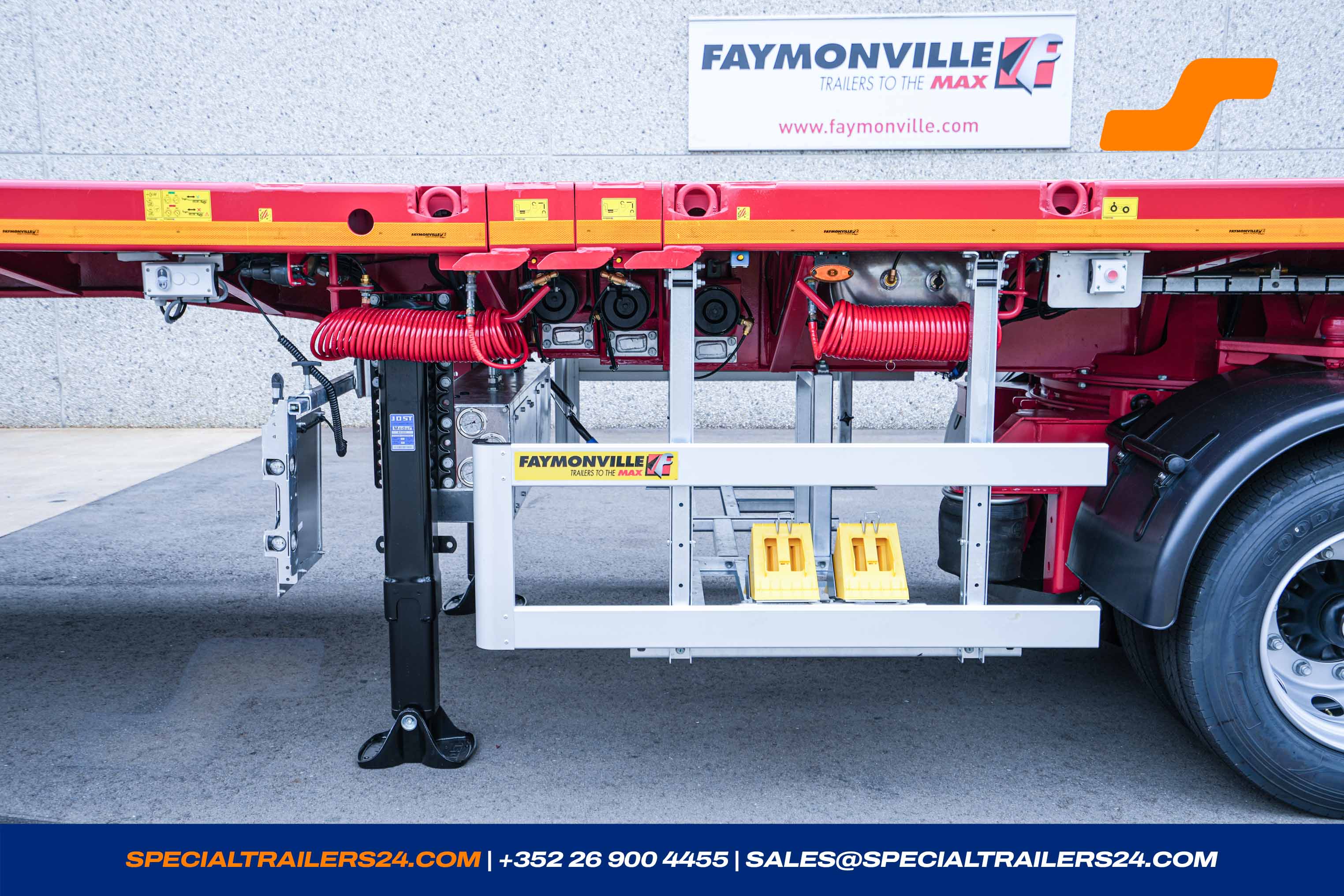

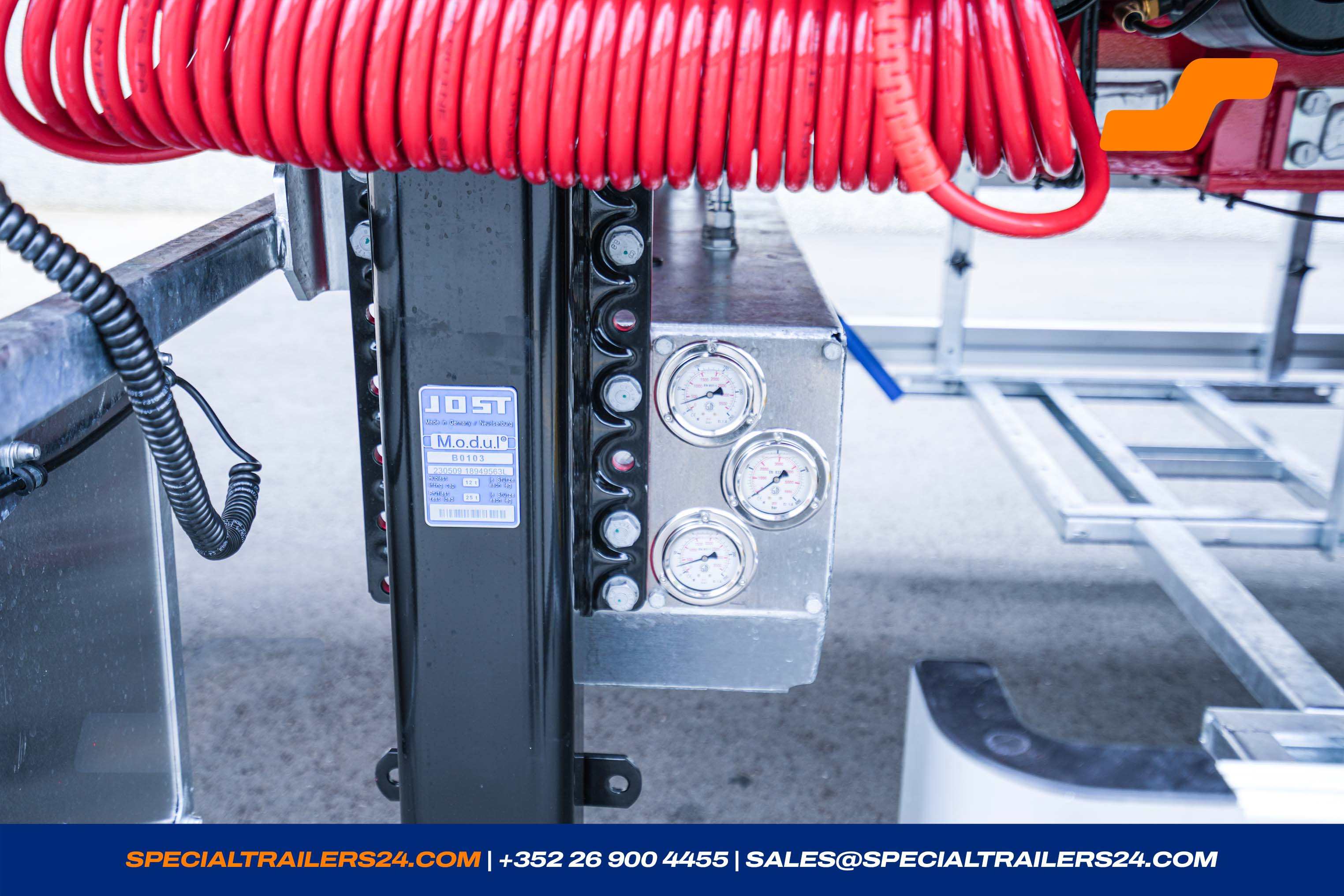

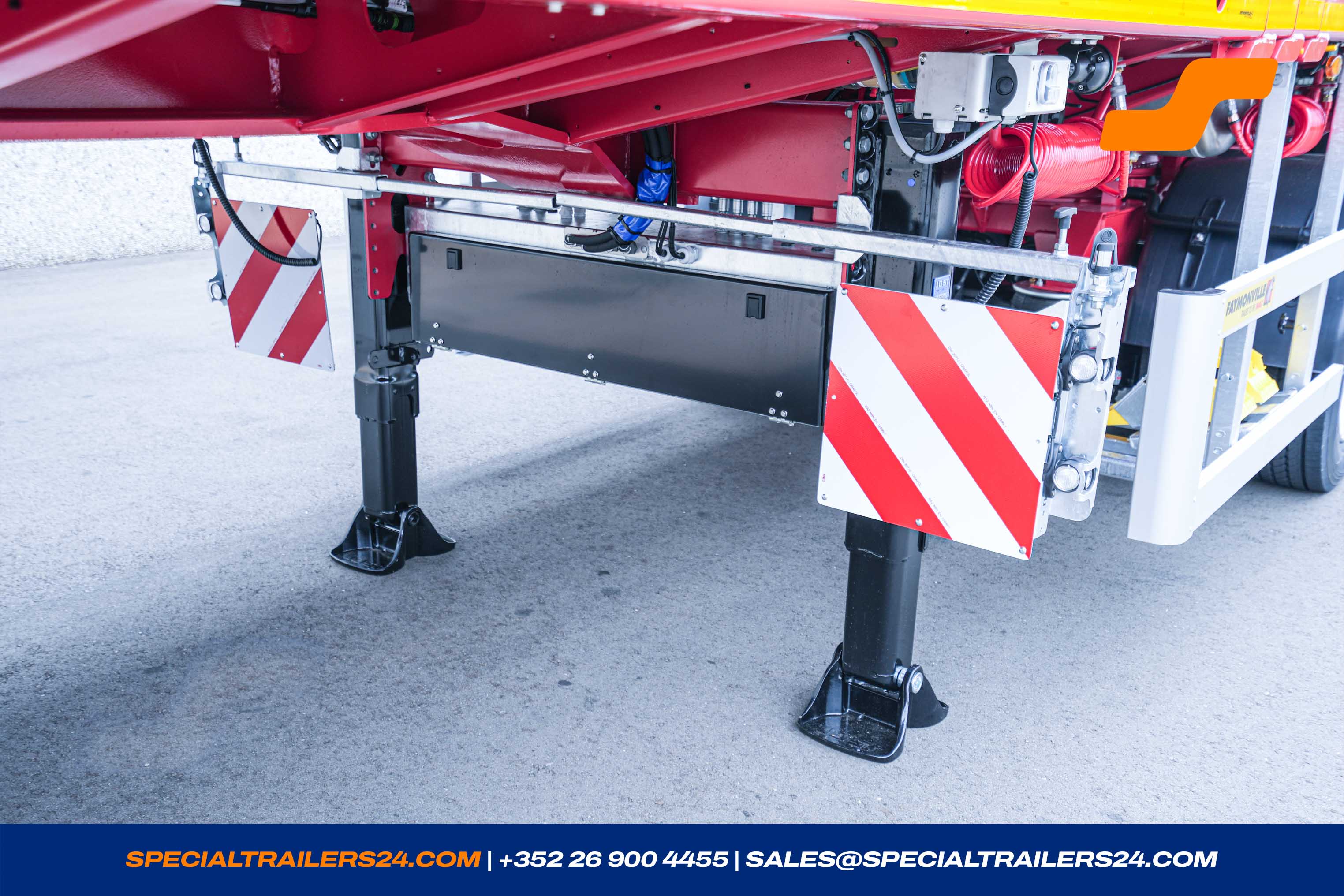

Mechanical landing gears with 2-speeds,

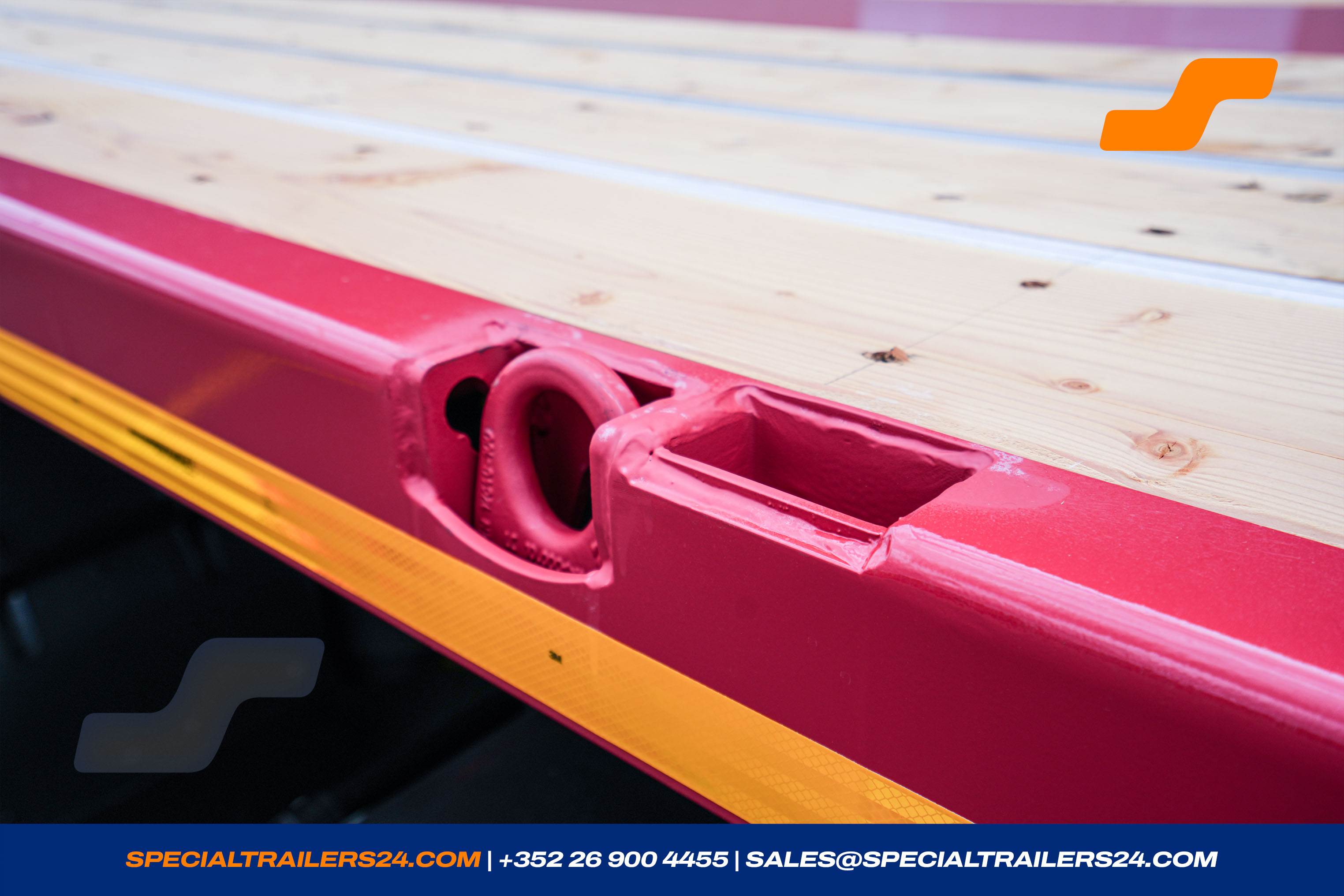

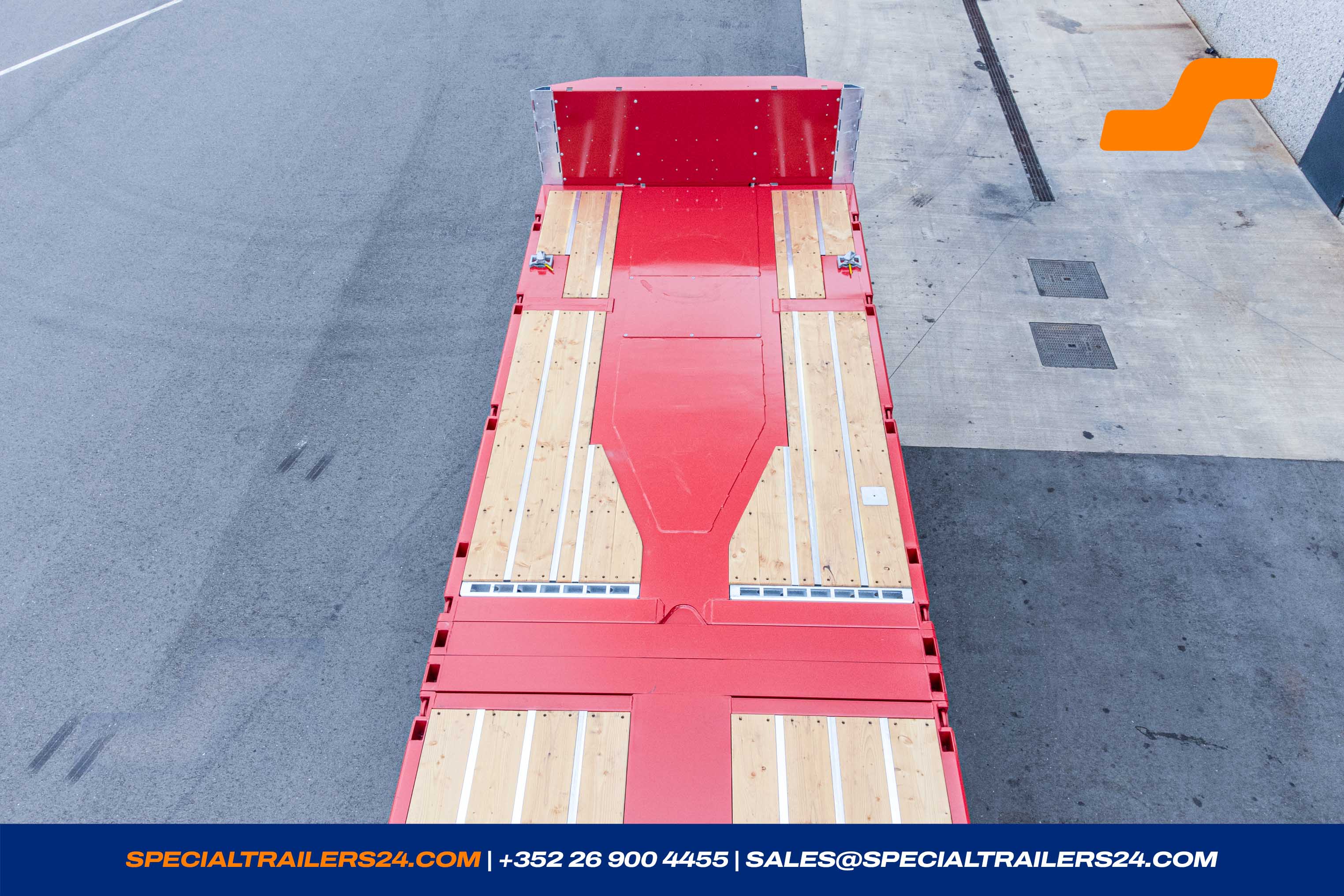

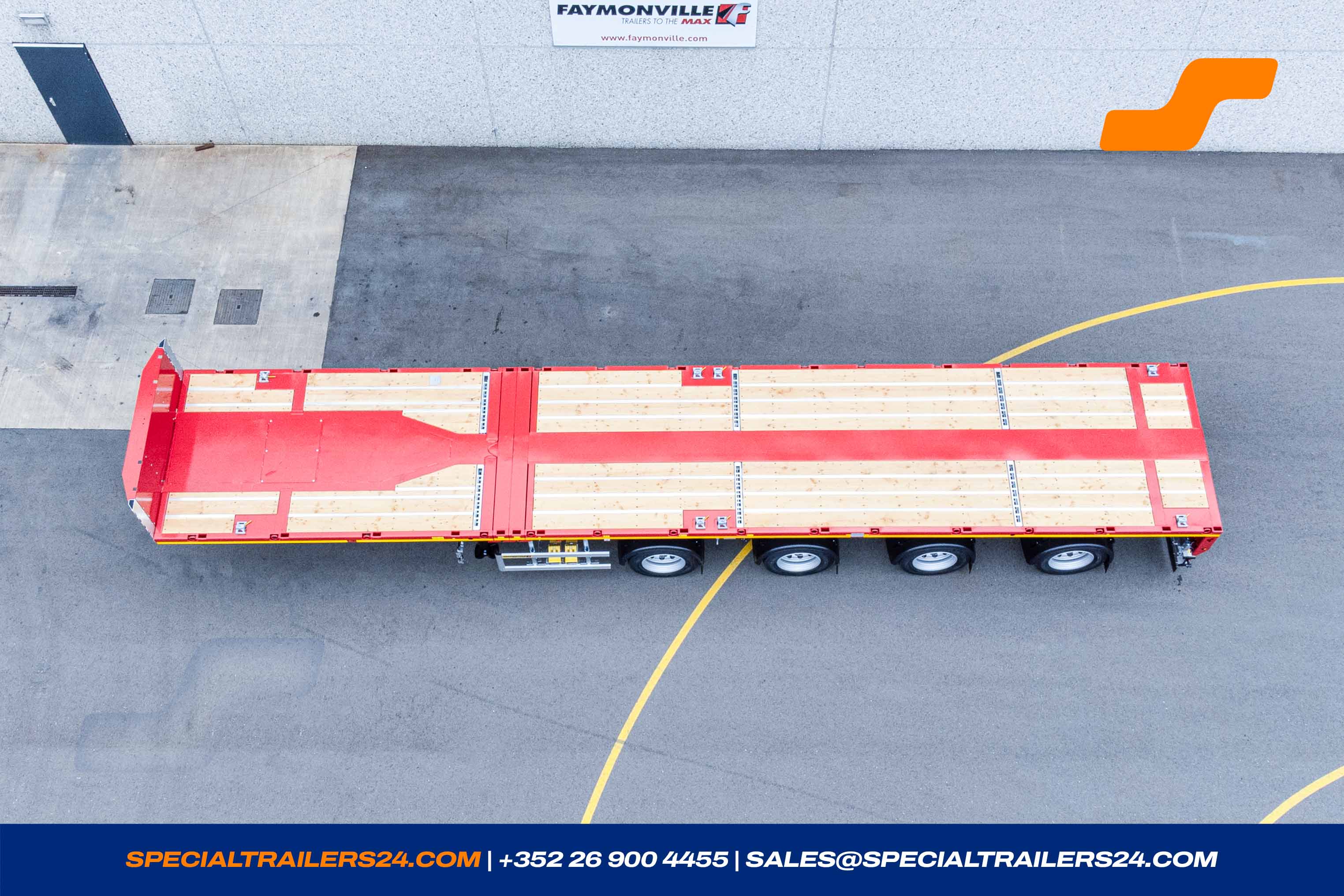

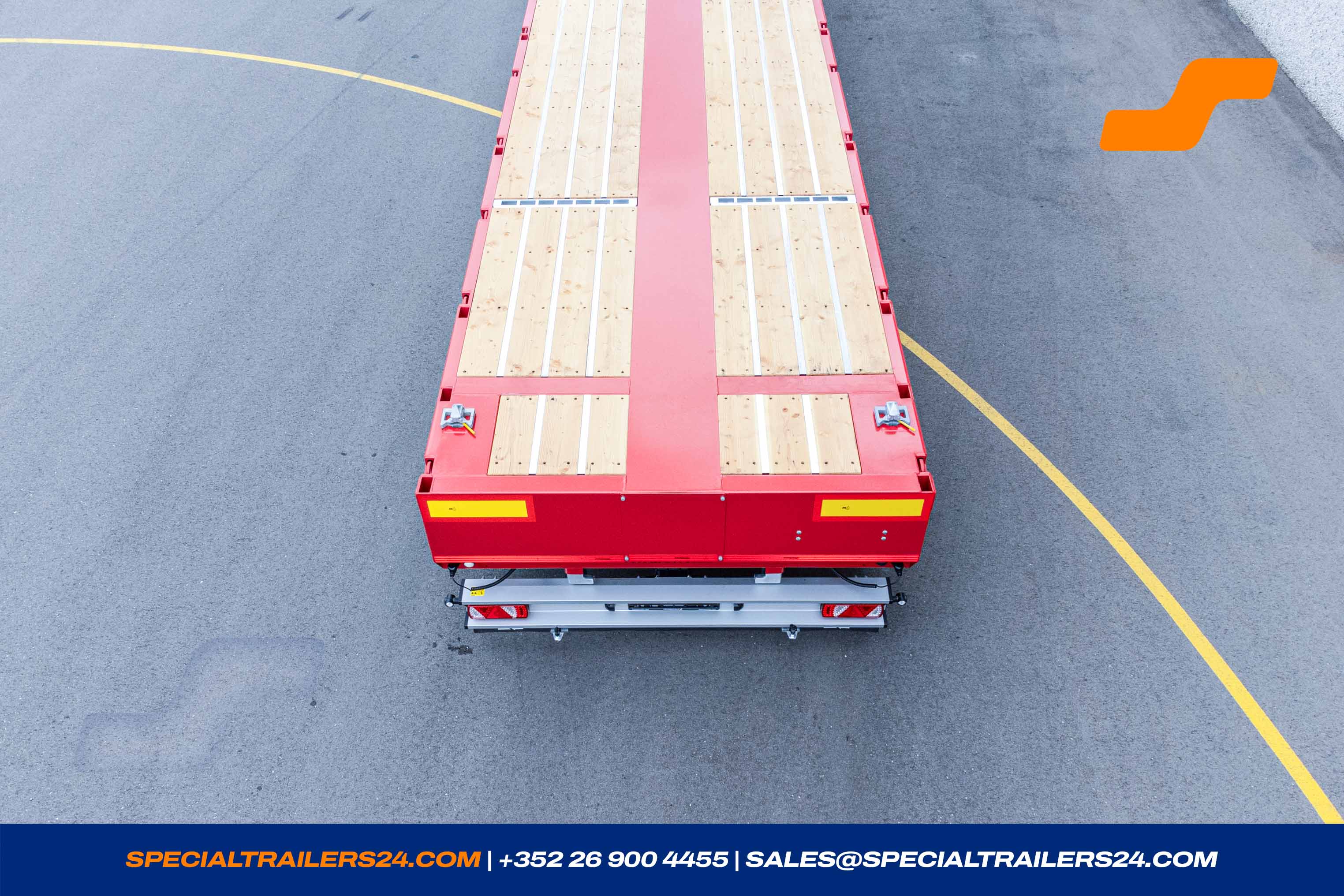

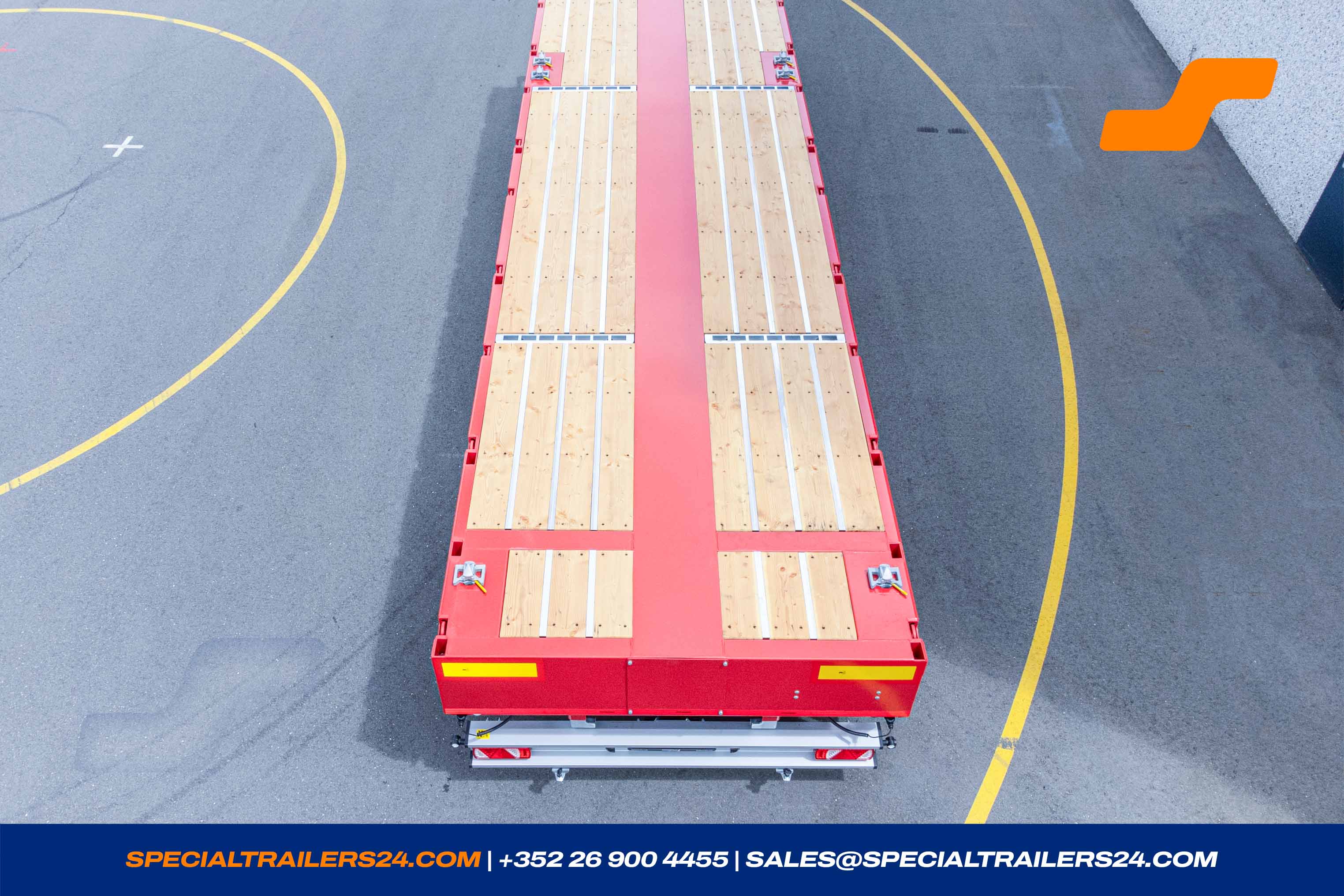

JOST Modul B - static testload = 50.000kg. - The gooseneck and the loading platform with wood floor, ± 32 mm thickness, with aluminium-Omega profiles.
-

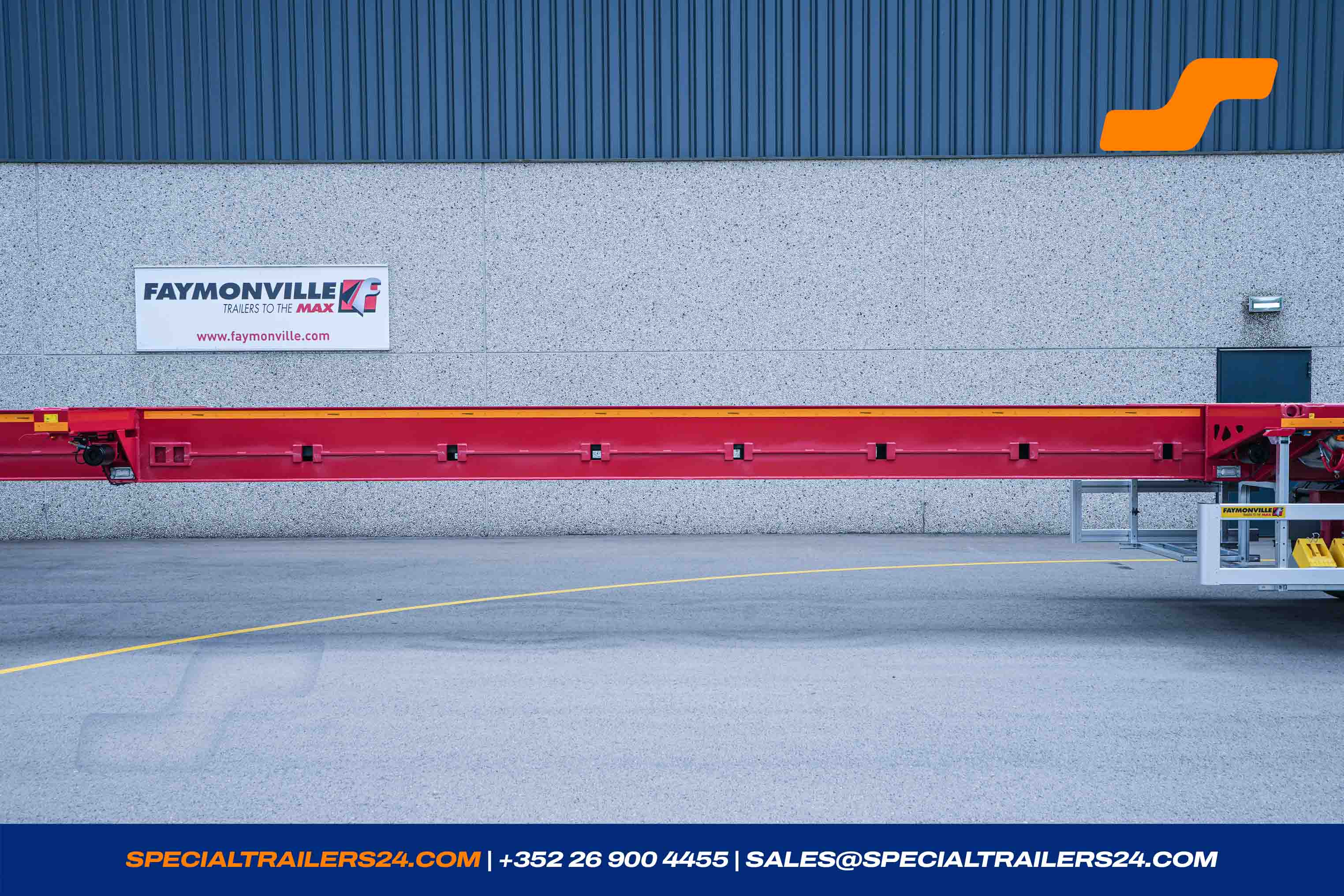

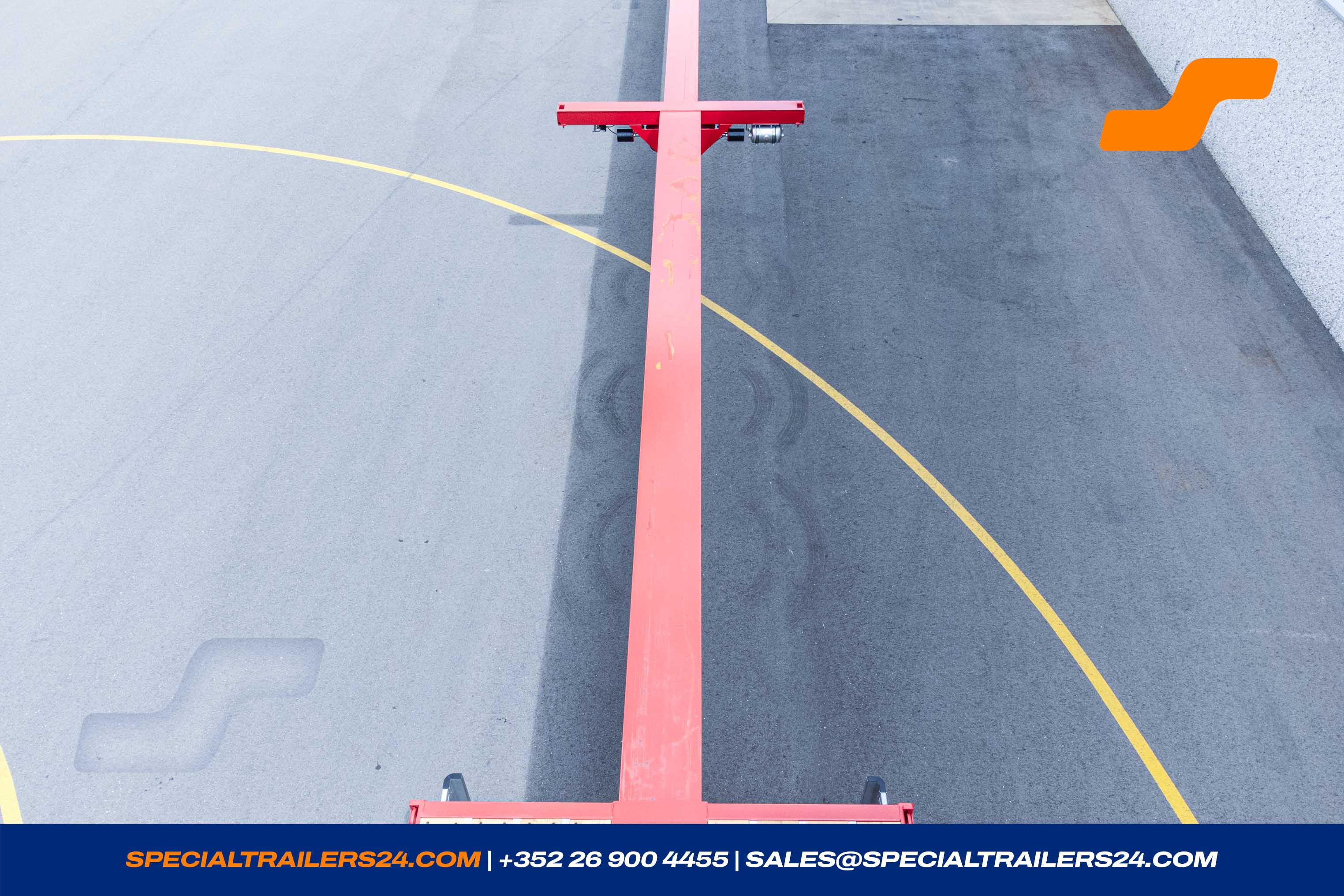

On the extension beam with big cross section a locking position every ± 1.000 mm.
On the extension beam with middle cross section a locking position every ± 3.000 mm and at full extension.
On the extension beam with small cross section a locking position every ± 3.000 mm and at full extension.
In this manner a locking every ± 1.000 mm is possible. -
-
- 2 rows of stake pockets, in the loading platform for stakes ± 100 x 50 mm.
- Two wheel chocks with carrier under the platform.
- 1 spare wheel is delivered separately, WITHOUT holder.

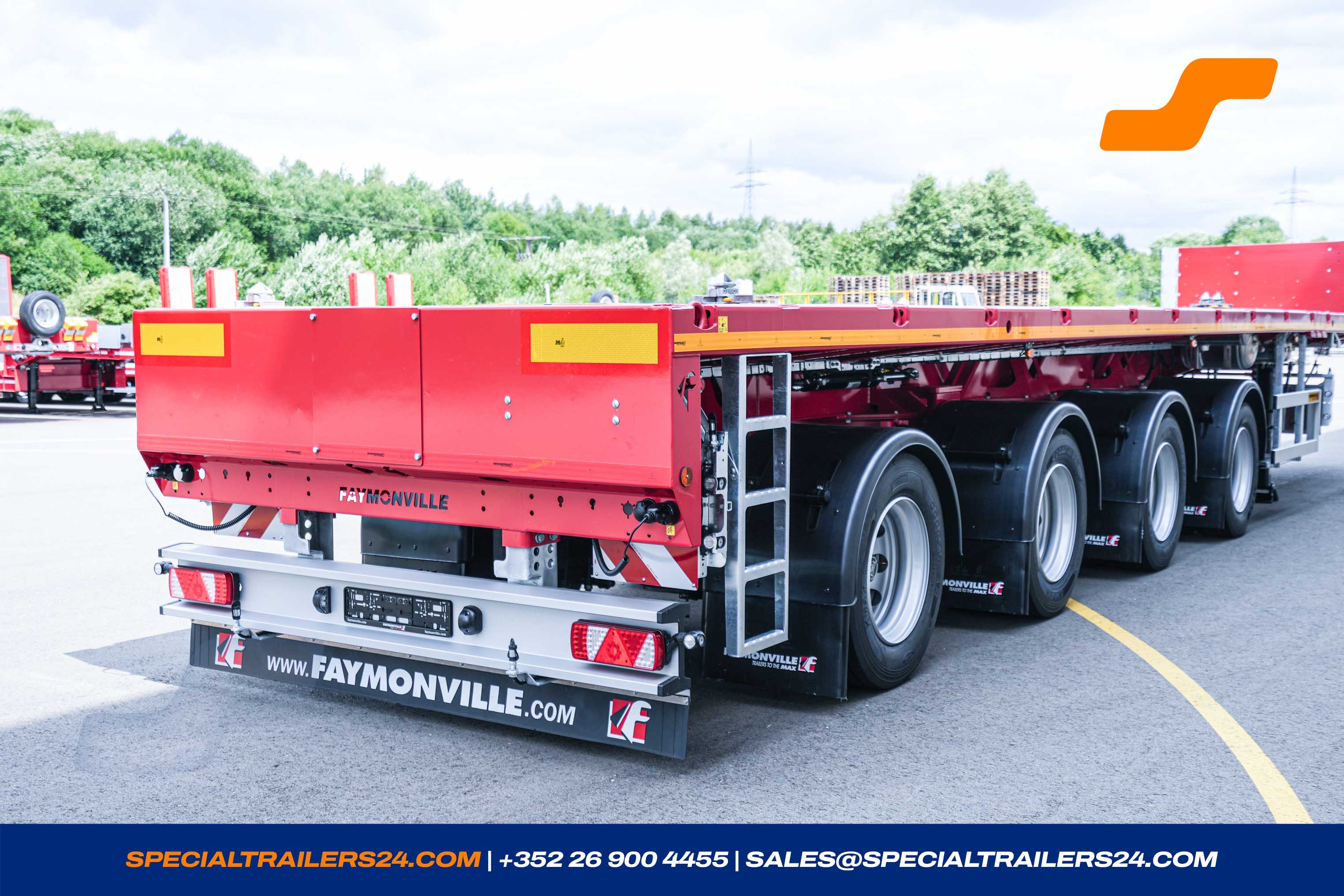

- Ladder mounted on the right hand side.
- Mudguard on all axles.

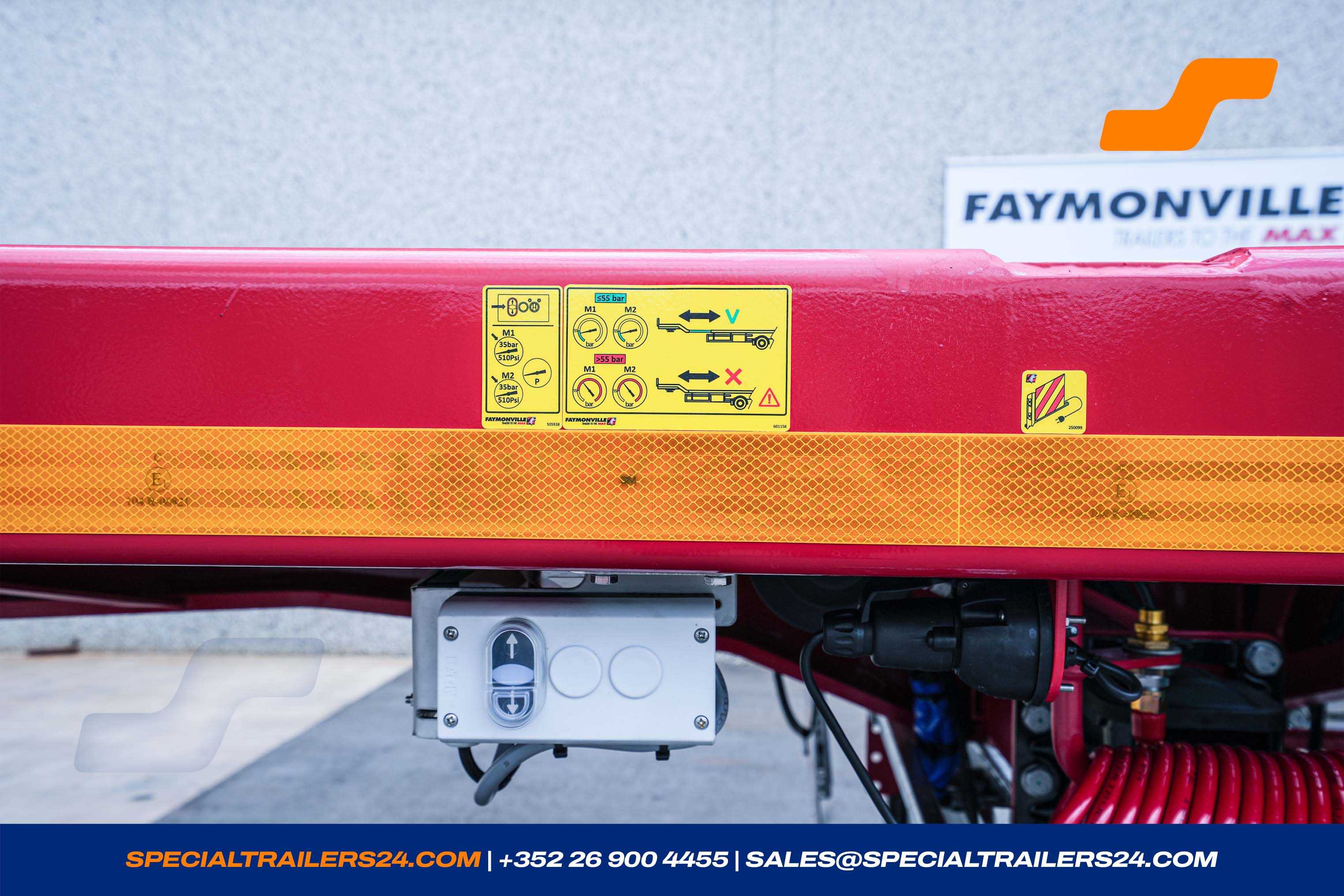

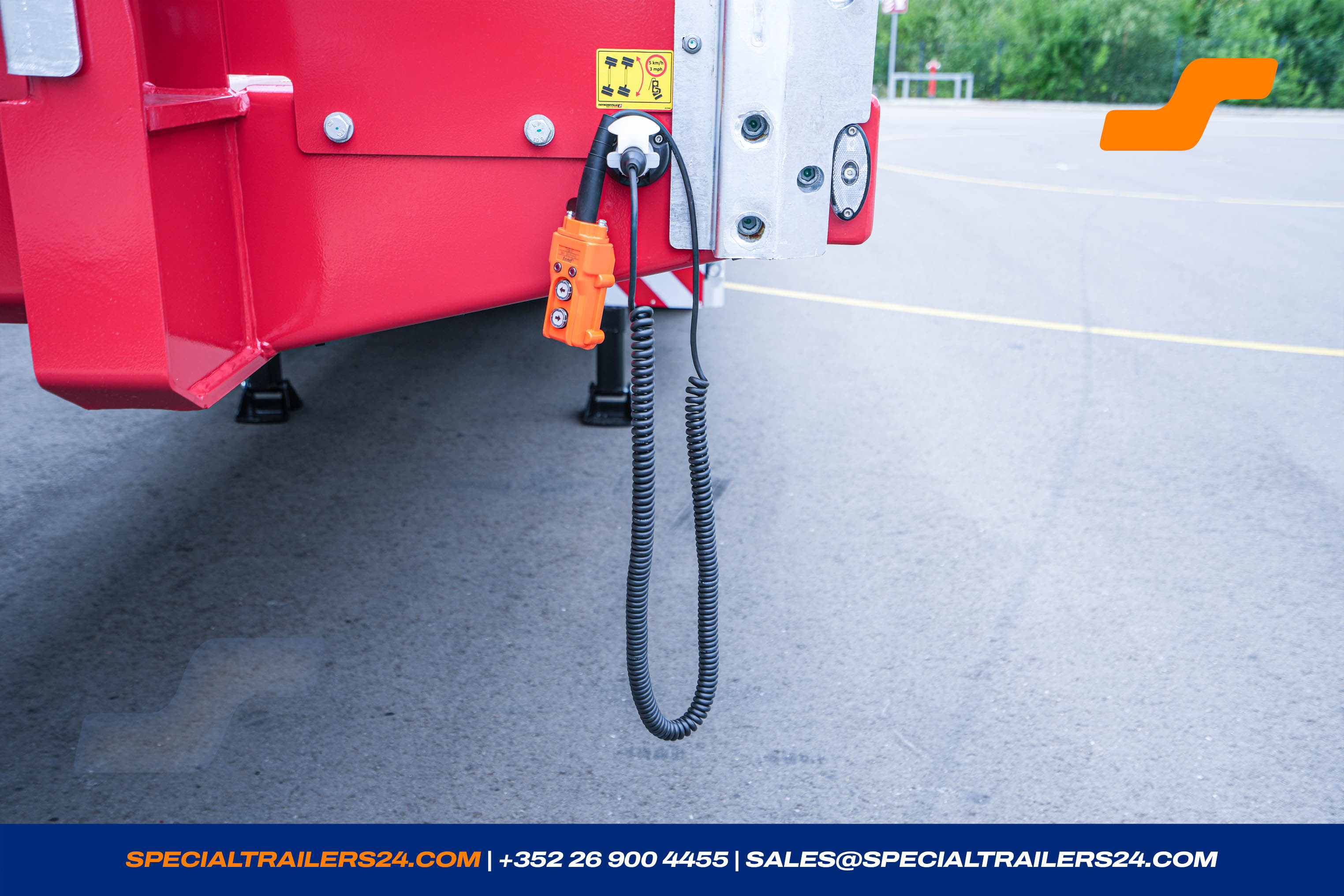

- Manual-steering, handling with cable remote control from the front and the back, with control lights for the realignement of the axles, without connection to the truck.
- Last axle with air bellows deflation activated when the parking brake is applied.
- On the right and left under the gooseneck and on the rear of the trailer is one 7-pole socket for the warning boards.
- One 7-pole socket on the rear end.
- A mud flap (www.faymonville.com) at the rear.
-
Round NATO sockets on the connecting bar in front.
(Maeler & Kaege VG 96 917) - Cable for the electric-hydraulic pump and/or electric winch (35 mm², 3.5m long) between the semi-trailer and the truck with socket (NATO-NATO).
-

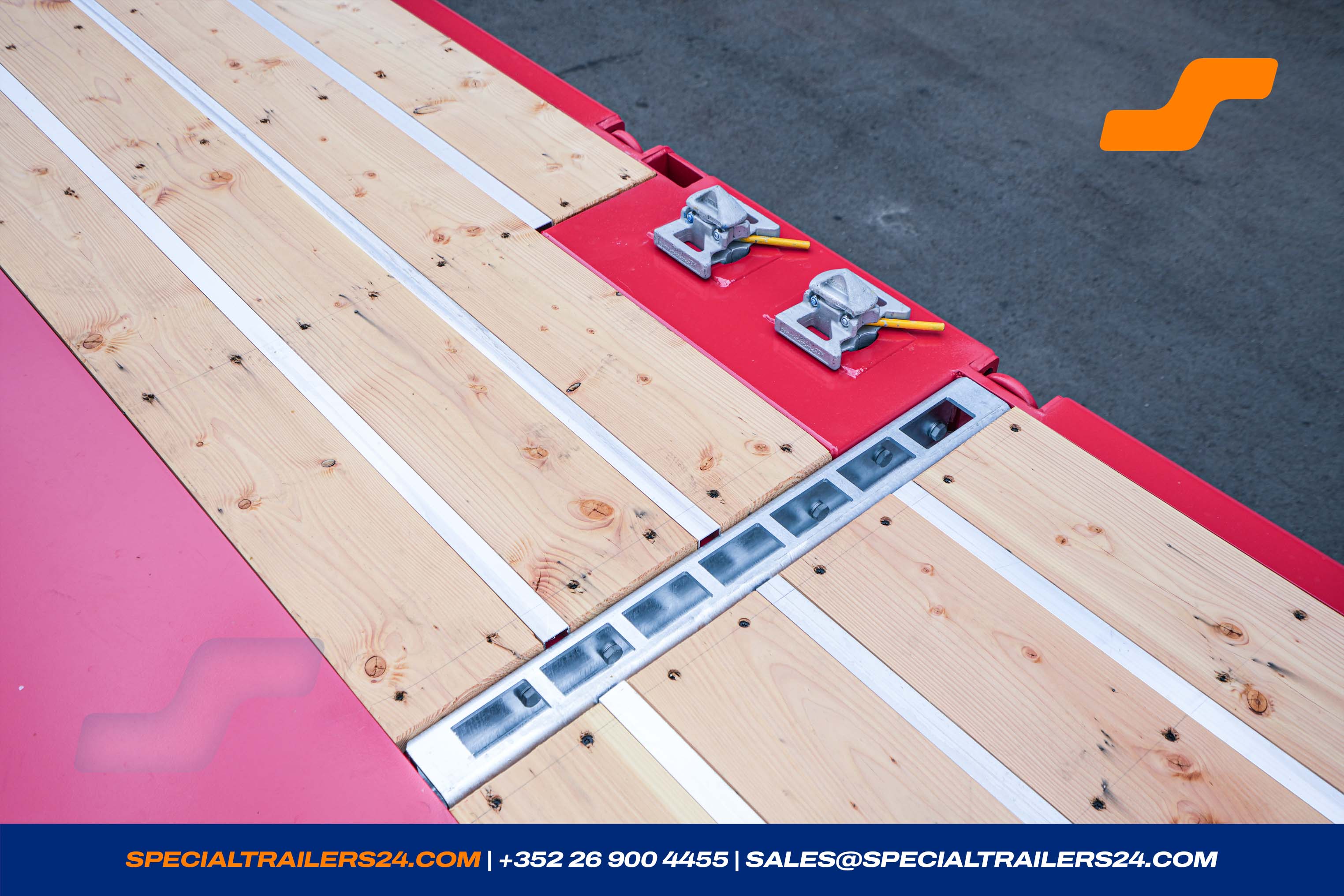

Containerpockets WADER in the loading platform for the transport of:
2x 20' containers
1x 40' containers - 4 pairs of removable WADER-containerlocks.
-

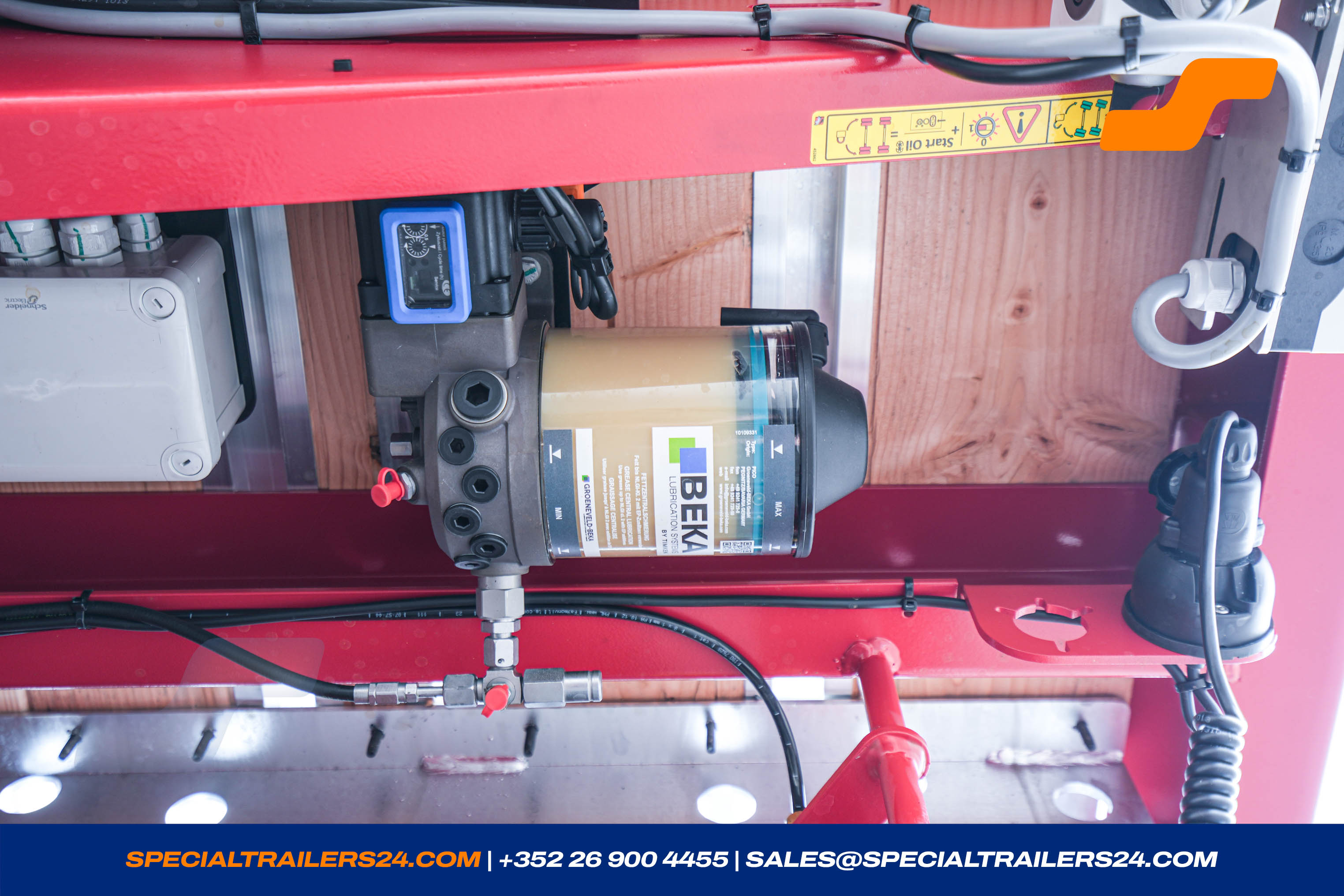

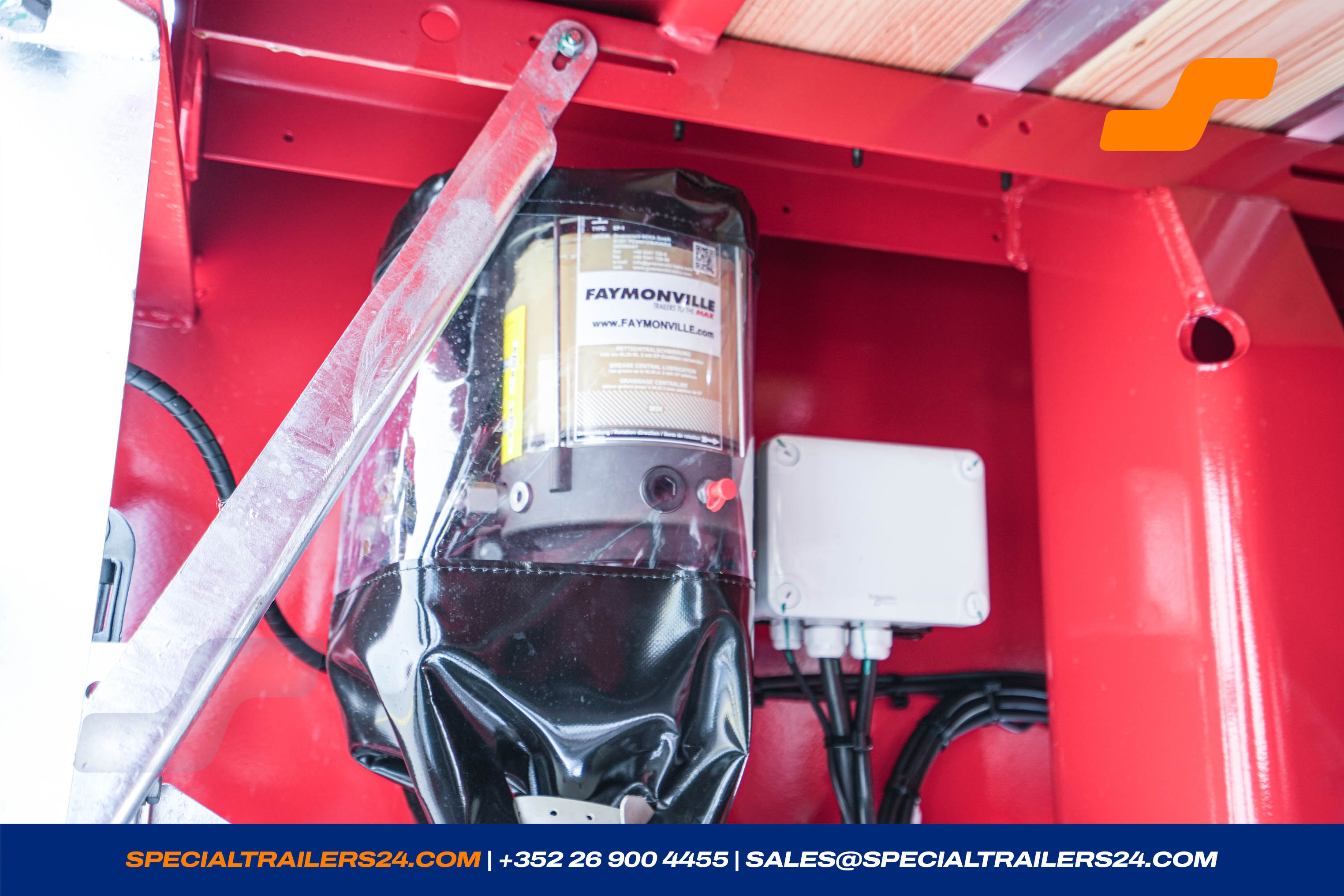

Central greasing with 2 pumps, make BEKAMAX, with NLGI-2 normal grease.
Removable protection box around the (all) pump(s) of the central greasing. - Wireless remote control for the remote steering, in addition to the cable remote control, with optical realignment indication on the receiver.

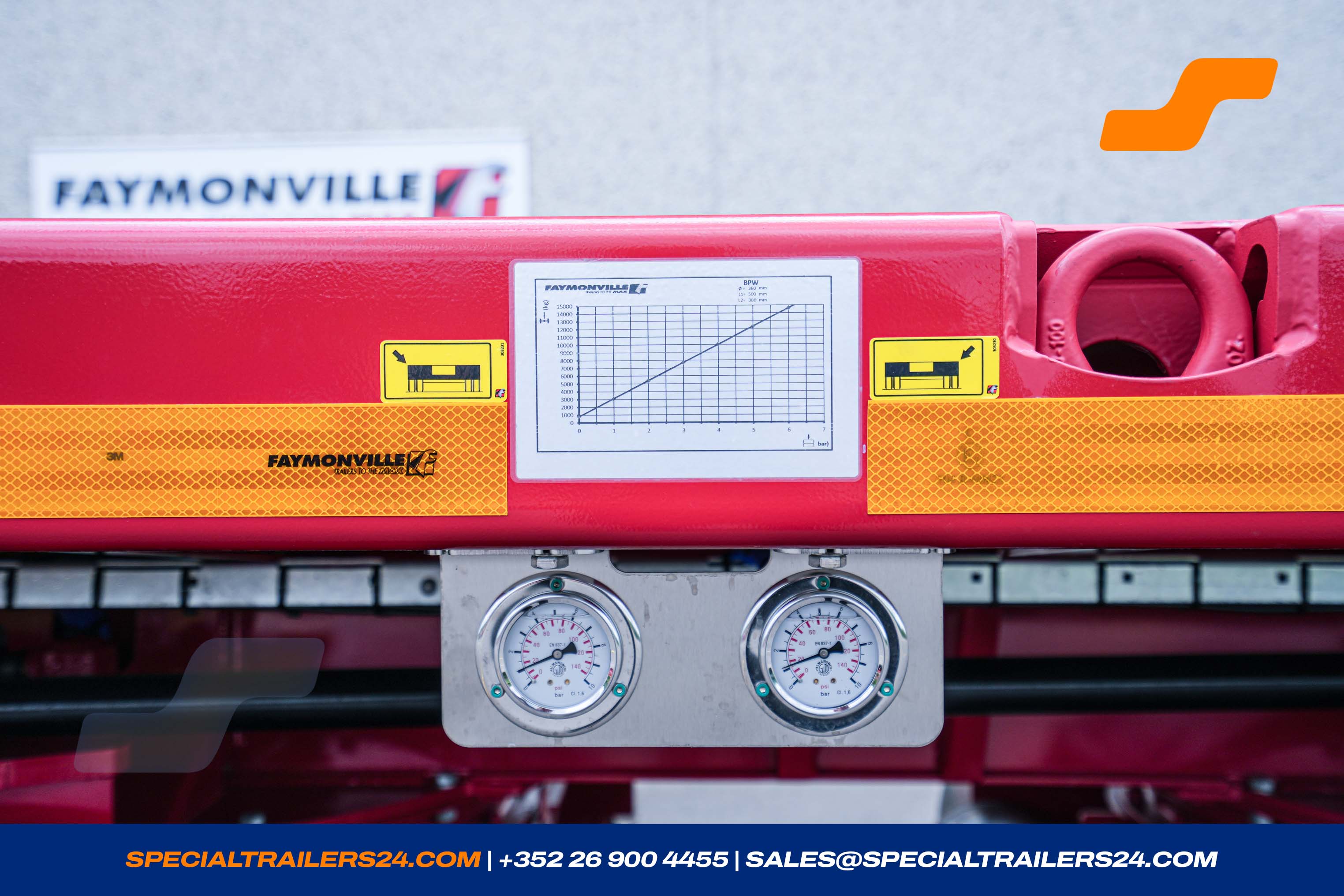

- 2 load manometers for the axle load on each side included axle load graph.
-
1st axle with automatic lift axle function and starting aid in accordance with EU Directives 2021/535.
Both functions can be activated by means of a push-button in the loading area or via the brake pedal in the truck.
Only for vehicles with EBS. - On the right and left, under the gooseneck and on the rear of the trailer is one fixing for the warning boards.

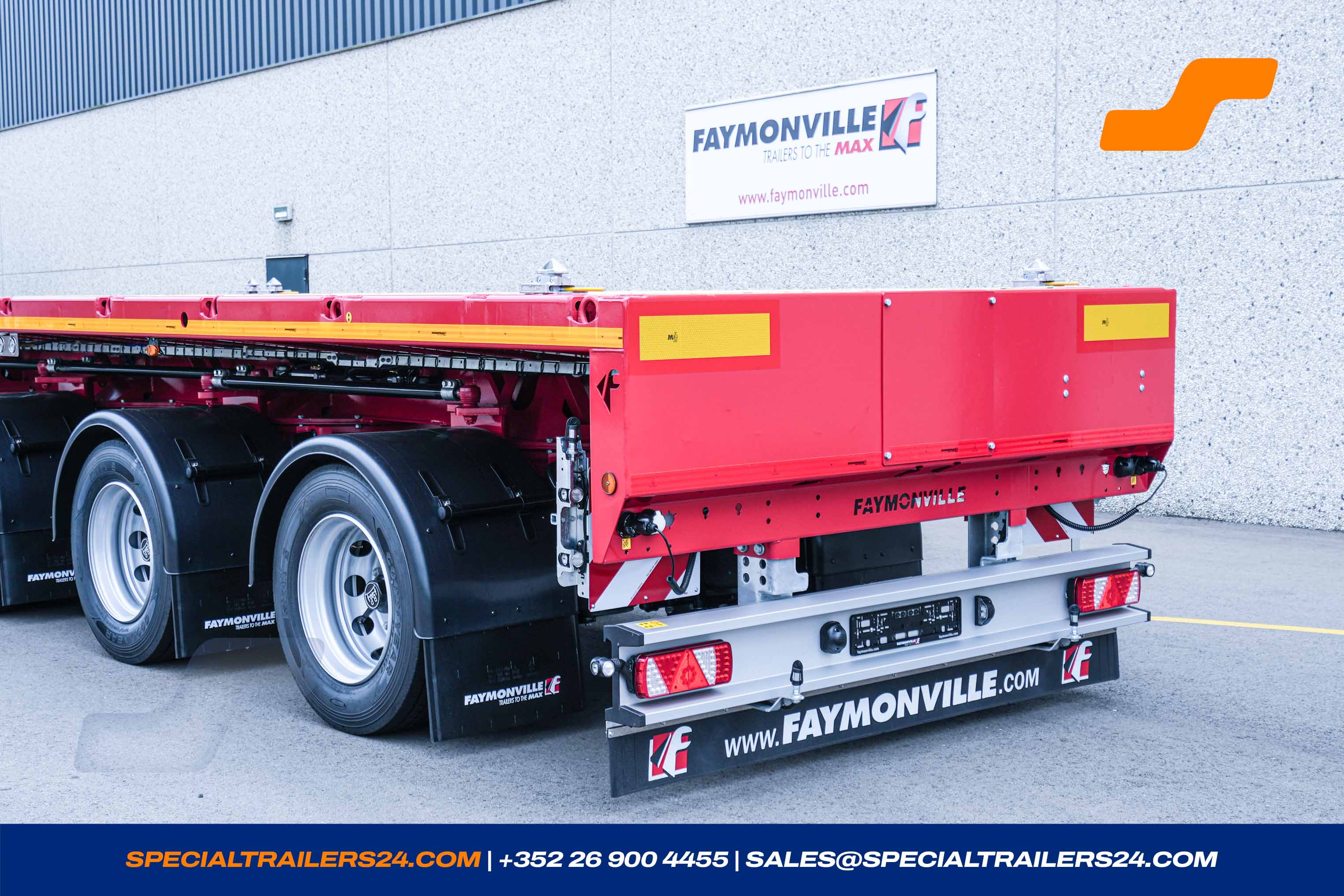

- EU-reflector at the rear end.
- 1 LED flashing beacon light on the left and right side at the rear of the trailer.
Accessories
1 x Accessory
TeleMAX-Accessories
- Manual and description :
- If your truck has a special body-work, please contact us.
- All the connecting cables (electric cables, ABS/EBS cables, brake pipes, hydraulic lines,...) between the truck and the trailer are according EU-directives, part of the delivery of the truck and not of the trailer.
- To consider : All accessories and special equipments increases the tare weight of the semi-trailer and decrease the payload.
- Yellow reflective tape on both sides on the entire length according to the EU regulation.
- Red reflective tape on the rear on the entire width according to the EU regulation.
-
Warning boards:
-4 warning boards± 423 x 423 mm, extendable ± 1.000 mm, incl. 2 LED position lights and holders on the boards to put a flashing beacon.
